Name: Straight Globe Valve
Brand: Euro Flow Control
SKU: EFC-86

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN600
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: DIN 3356, DIN 3356/2
Inspection & test: EN 12266
Face to face: EN 558 Serie 1, DIN 3202 F1, DIN EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Packing
Gasket
Handwheel
Disc Nut
Gland
Stud Nut
T Stud Nut

Dimensions per size(76 sizes)

Size	D (mm)	k (mm)	bolts	L (mm)	OC (mm)	H_max (mm)	kg (kg)	Weight
DN15 (PN10)	95	65	Ø14x4	130	120	185	-	3.6 kg
DN15 (PN16)	95	65	Ø14x4	130	120	185	-	3.6 kg
DN15 (PN25)	95	65	Ø14x4	130	120	185	4	3.6 kg
DN15 (PN40)	95	65	Ø14x4	130	120	185	4.7	3.6 kg
DN20 (PN10)	105	75	Ø14x4	150	120	185	-	4.25 kg
DN20 (PN16)	105	75	Ø14x4	150	120	185	-	4.25 kg
DN20 (PN25)	105	75	Ø14x4	150	120	185	4.5	4.25 kg
DN20 (PN40)	105	75	Ø14x4	150	120	185	5	4.25 kg
DN25 (PN10)	115	85	Ø14x4	160	140	195	-	5.15 kg
DN25 (PN16)	115	85	Ø14x4	160	140	195	-	5.15 kg
DN25 (PN25)	115	85	Ø14x4	160	140	195	5.75	5.15 kg
DN25 (PN40)	115	85	Ø14x4	160	140	195	6	5.15 kg
DN32 (PN10)	140	100	Ø18x4	180	140	205	-	6.75 kg
DN32 (PN16)	140	100	Ø18x4	180	140	205	-	6.75 kg
DN32 (PN25)	140	100	Ø18x4	180	140	205	6.85	6.75 kg
DN32 (PN40)	140	100	Ø18x4	180	140	205	7	6.75 kg
DN40 (PN10)	150	110	Ø18x4	200	160	230	-	9.6 kg
DN40 (PN16)	150	110	Ø18x4	200	160	230	-	9.6 kg
DN40 (PN25)	150	110	Ø18x4	200	160	230	10.2	9.6 kg
DN40 (PN40)	150	110	Ø18x4	200	160	230	11.5	9.6 kg
DN50 (PN10)	165	125	Ø18x4	230	180	240	-	12 kg
DN50 (PN16)	165	125	Ø18x4	230	180	240	-	12 kg
DN50 (PN25)	165	125	Ø18x4	230	180	240	12.5	12 kg
DN50 (PN40)	165	125	Ø18x4	230	180	240	13	12 kg
DN65 (PN10)	185	145	Ø18x8	290	200	275	-	16.4 kg
DN65 (PN16)	185	145	Ø18x8	290	200	275	-	16.4 kg
DN65 (PN25)	185	145	Ø18x8	290	200	275	18.5	16.4 kg
DN65 (PN40)	185	145	Ø18x8	290	200	275	21	16.4 kg
DN80 (PN10)	200	160	Ø18x8	310	225	290	-	23.2 kg
DN80 (PN16)	200	160	Ø18x8	310	225	290	-	23.2 kg
DN80 (PN25)	200	160	Ø18x8	310	225	290	25	23.2 kg
DN80 (PN40)	200	160	Ø18x8	310	225	290	27	23.2 kg
DN100 (PN10)	220	180	Ø18x8	350	250	350	-	33 kg
DN100 (PN16)	220	180	Ø18x8	350	250	350	-	33 kg
DN100 (PN25)	235	190	Ø22x8	350	250	350	35	33 kg
DN100 (PN40)	235	190	Ø22x8	350	250	350	36	33 kg
DN125 (PN10)	250	210	Ø18x8	400	285	410	-	55 kg
DN125 (PN16)	250	210	Ø18x8	400	285	410	-	55 kg
DN125 (PN25)	270	220	Ø26x8	400	285	410	58	55 kg
DN125 (PN40)	270	220	Ø26x8	400	285	410	60.5	55 kg
DN150 (PN10)	285	240	Ø22x8	480	320	430	-	87.5 kg
DN150 (PN16)	285	240	Ø22x8	480	320	430	-	87.5 kg
DN150 (PN25)	300	250	Ø26x8	480	320	430	92	87.5 kg
DN150 (PN40)	300	250	Ø26x8	480	320	430	101	87.5 kg
DN200 (PN10)	340	295	Ø22x12	600	400	525	-	130 kg
DN200 (PN16)	340	295	Ø22x12	600	400	525	-	130 kg
DN200 (PN25)	360	310	Ø26x12	600	400	525	150	130 kg
DN200 (PN40)	375	320	Ø30x12	600	400	525	164	130 kg
DN250 (PN10)	400	350	Ø22x12	730	460	630	-	204 kg
DN250 (PN16)	405	355	Ø26x12	730	460	630	-	204 kg
DN250 (PN25)	425	370	Ø30x12	730	460	630	230	204 kg
DN250 (PN40)	450	385	Ø30x12	730	460	630	235	204 kg
DN300 (PN10)	455	400	Ø22x12	850	460	700	-	280 kg
DN300 (PN16)	460	410	Ø26x12	850	460	700	-	280 kg
DN300 (PN25)	485	430	Ø30x16	850	460	700	300	280 kg
DN300 (PN40)	515	450	Ø30x16	850	460	700	315	280 kg
DN350 (PN10)	505	460	Ø22x16	980	640	760	-	370 kg
DN350 (PN16)	520	470	Ø26x16	980	640	760	-	370 kg
DN350 (PN25)	555	490	Ø33x16	980	640	760	395	370 kg
DN350 (PN40)	580	510	Ø33x16	980	640	760	410	370 kg
DN400 (PN10)	565	515	Ø26x16	1100	640	840	-	505 kg
DN400 (PN16)	580	525	Ø30x16	1100	640	840	-	505 kg
DN400 (PN25)	620	550	Ø36x16	1100	640	840	530	505 kg
DN400 (PN40)	660	585	Ø36x16	1100	640	840	550	505 kg
DN450 (PN10)	615	565	Ø26x20	1200	640	915	-	705 kg
DN450 (PN16)	640	585	Ø33x20	1200	640	915	-	705 kg
DN450 (PN25)	670	600	Ø36x20	1200	640	915	730	705 kg
DN450 (PN40)	685	610	Ø39x20	1200	640	915	750	705 kg
DN500 (PN10)	670	620	Ø26x20	1250	640	980	-	915 kg
DN500 (PN16)	715	650	Ø33x20	1250	640	980	-	915 kg
DN500 (PN25)	730	660	Ø36x20	1250	640	980	950	915 kg
DN500 (PN40)	755	670	Ø39x20	1250	640	980	970	915 kg
DN600 (PN10)	780	725	Ø26x20	1450	640	1200	-	1110 kg
DN600 (PN16)	840	770	Ø39x20	1450	640	1200	-	1110 kg
DN600 (PN25)	845	770	Ø42x20	1450	640	1200	1150	1110 kg
DN600 (PN40)	890	795	Ø48x20	1450	640	1200	1200	1110 kg

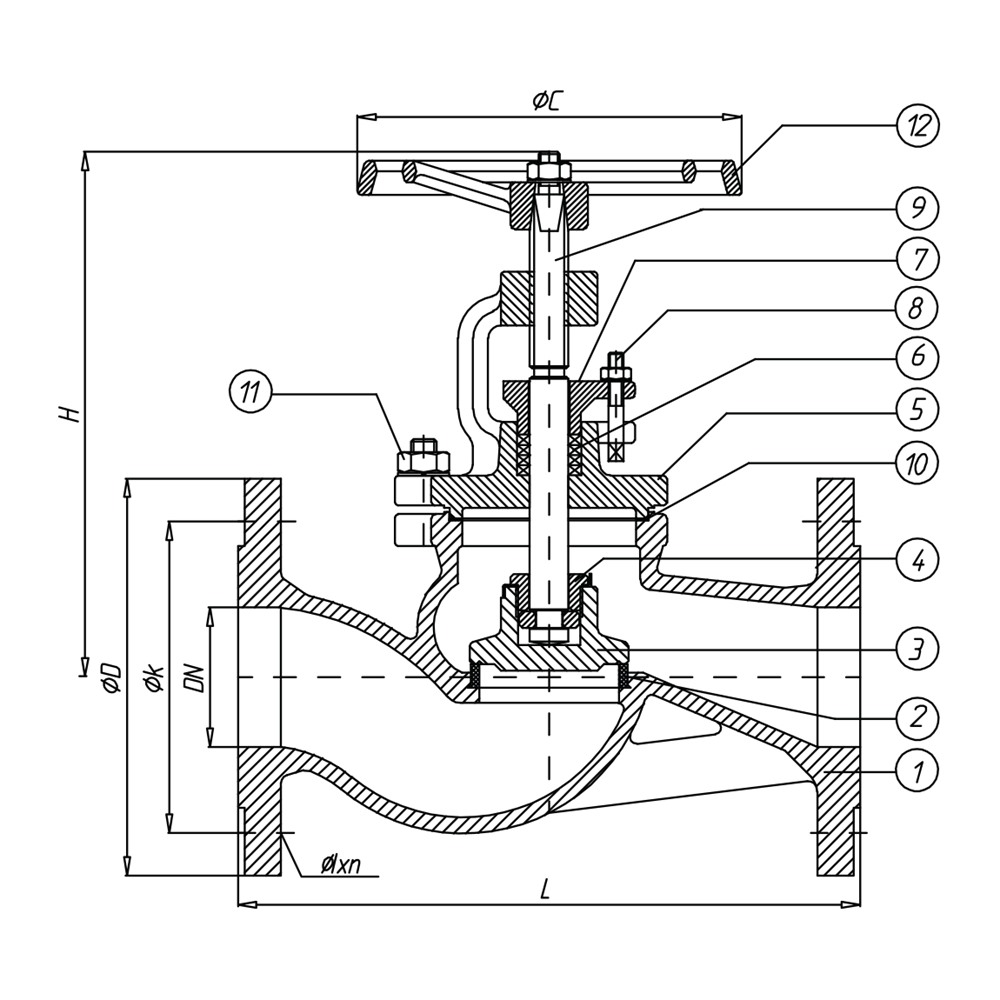

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

Straight pattern globe valve body form
Regulating disc option available
ANSI flange option available
Graphite packing for elevated temperature service
Wide range of body and trim material combinations including cast iron, ductile iron, bronze, stainless steel, Monel, and alloy steel
Stellite hard-facing option on seat rings

Description

A straight pattern globe valve designed to DIN 3356, available in pressure ratings PN10 through PN40. Size range covers DN15 to DN600 with flanged end connections to EN 1092-2/B. Options include regulating disc and ANSI flange configurations.

Selection notes

This globe valve is a straight pattern pattern, supplied for flanged installation.

Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.

The body is offered in GG-25, GGG-40, GS-25 and Bronze, so the grade can be matched to the service rather than the other way round.

Seat and trim options are AISI 304, AISI 316, 13Cr Bronze and Stellite 6-21. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to DIN 3356, EN 558 Serie 1, DIN 3202 F1, EN 12266 and DIN 3356/2.
