Straight Type Cast Steel Globe Valve
Specifications
Confirmed at quote- Size Range
- DN15 to DN250
- Pressure Class
- PN64
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3356
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 2, DIN 3202 F2
- Flange & end dimension
- DIN EN 1092 PN 64
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Disc Nut
- Gland
- Stud Nut
- T Stud Nut

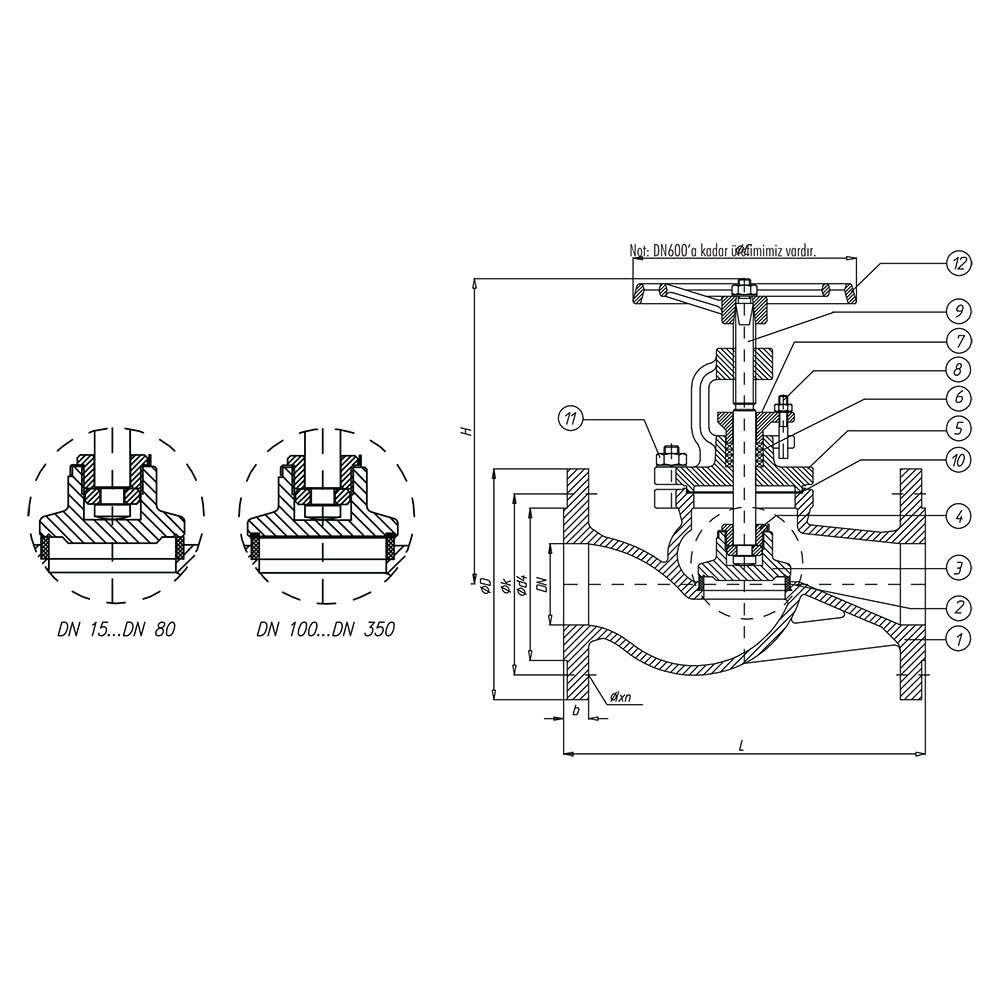

Dimensions per size(13 sizes)
| Size | L (mm) | H (mm) | D (mm) | k (mm) | d4 (mm) | b (mm) | Oxn | Strok_max (mm) | OC (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 210 | 230 | 105 | 75 | 45 | 20 | 14x4 | 11 | - | 9.5 kg |
| DN20 | 230 | 230 | 130 | 90 | 58 | 24 | 18x4 | 11 | 160 | 11 kg |
| DN25 | 230 | 230 | 140 | 100 | 68 | 24 | 18x4 | 11 | 160 | 12.5 kg |
| DN32 | 260 | 310 | 155 | 110 | 78 | 26 | 22x4 | 17 | 160 | 16.5 kg |
| DN40 | 260 | 310 | 170 | 125 | 88 | 28 | 22x4 | 17 | 200 | 20.5 kg |
| DN50 | 300 | 315 | 180 | 135 | 102 | 26 | 22x4 | 22 | 200 | 25 kg |
| DN65 | 340 | 420 | 205 | 160 | 122 | 26 | 22x8 | 38 | 315 | 40 kg |
| DN80 | 380 | 485 | 215 | 170 | 138 | 28 | 22x8 | 59 | 315 | 55 kg |
| DN100 | 430 | 550 | 250 | 200 | 162 | 30 | 26x8 | 68 | 400 | 85 kg |
| DN125 | 500 | 625 | 295 | 240 | 188 | 34 | 30x8 | 68 | 400 | 125 kg |
| DN150 | 550 | 630 | 345 | 280 | 218 | 36 | 33x8 | 79 | 500 | 150 kg |
| DN200 | 650 | 860 | 415 | 345 | 285 | 42 | 36x12 | 128 | 500 | 260 kg |
| DN250 | 775 | 900 | 470 | 400 | 345 | 46 | 36x12 | 180 | 630 | 375 kg |
Typical applications
- high pressure and temperature applications
Actuation options
Features
- Straight-type body configuration
- Cast carbon steel body and bonnet
- X20Cr13 martensitic stainless steel disc and stem
- Graphite packing
- Flanged ends to EN 1092-2/B
- Available up to DN600 on request
- Alloy steel material variants available for special pressure and temperature conditions
Description
Straight-type cast steel globe valve designed to DIN 3356, with flanged ends to EN 1092-2/B. Available in nominal diameters DN15 to DN250, rated to PN64. Body material is GS-C 25 (GP240GH+N) with X20Cr13 disc and stem, and graphite packing.
Selection notes
This globe valve is a straight type and cast steel pattern, supplied for flanged installation.
Sizes run DN15 to DN250, in PN64.
The body is GS-C 25 (GP240GH+N).
Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN 3356, EN 558 Serie 2, DIN 3202 F2, EN 12266 and DIN EN 1092 PN 64.
