Globe Valve

Straight Globe Valve

Name: Straight Globe Valve
Brand: Euro Flow Control
SKU: EFC-69

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN600
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: DIN 3356/2-F1
Inspection & test: DIN EN 12266
Face to face: DIN EN 558-1-1, DIN EN 558-1-FTF1
Flange & end dimension: DIN EN 1092

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Packing
Gasket
Handwheel
Disc Nut
Gland

Dimensions per size(76 sizes)

Size	D (mm)	k (mm)	bolts	L (mm)	OC (mm)	H max (mm)	kg (kg)	Weight
DN15 (PN10)	95	65	4xØ14	130	120	185	-	3.6 kg
DN15 (PN16)	95	65	4xØ14	130	120	185	3.6	3.6 kg
DN15 (PN25)	95	65	4xØ14	130	120	185	4	3.6 kg
DN15 (PN40)	95	65	4xØ14	130	120	185	4.7	3.6 kg
DN20 (PN10)	105	75	4xØ14	150	120	185	-	4.25 kg
DN20 (PN16)	105	75	4xØ14	150	120	185	4.25	4.25 kg
DN20 (PN25)	105	75	4xØ14	150	120	185	4.25	4.25 kg
DN20 (PN40)	105	75	4xØ14	150	120	185	5.1	4.25 kg
DN25 (PN10)	115	85	4xØ14	150	140	195	-	5.15 kg
DN25 (PN16)	115	85	4xØ14	150	140	195	5.15	5.15 kg
DN25 (PN25)	115	85	4xØ14	150	140	195	5.75	5.15 kg
DN25 (PN40)	115	85	4xØ14	150	140	195	6.2	5.15 kg
DN32 (PN10)	140	100	4xØ18	180	140	205	-	6.75 kg
DN32 (PN16)	140	100	4xØ18	180	140	205	6.75	6.75 kg
DN32 (PN25)	140	100	4xØ18	180	140	205	6.85	6.75 kg
DN32 (PN40)	140	100	4xØ18	180	140	205	7.2	6.75 kg
DN40 (PN10)	150	110	4xØ18	200	160	230	-	9.6 kg
DN40 (PN16)	150	110	4xØ18	200	160	230	9.6	9.6 kg
DN40 (PN25)	150	110	4xØ18	200	160	230	10.2	9.6 kg
DN40 (PN40)	150	110	4xØ18	200	160	230	11.5	9.6 kg
DN50 (PN10)	165	125	4xØ18	230	160	240	-	12 kg
DN50 (PN16)	165	125	4xØ18	230	160	240	12	12 kg
DN50 (PN25)	165	125	4xØ18	230	160	240	12.5	12 kg
DN50 (PN40)	165	125	4xØ18	230	160	240	13.2	12 kg
DN65 (PN10)	185	145	8xØ18	290	180	275	-	16.4 kg
DN65 (PN16)	185	145	8xØ18	290	180	275	16.4	16.4 kg
DN65 (PN25)	185	145	8xØ18	290	180	275	18.5	16.4 kg
DN65 (PN40)	185	145	8xØ18	290	180	275	21.3	16.4 kg
DN80 (PN10)	200	160	8xØ18	315	180	290	-	23.2 kg
DN80 (PN16)	200	160	8xØ18	315	180	290	23.3	23.2 kg
DN80 (PN25)	200	160	8xØ18	315	180	290	25	23.2 kg
DN80 (PN40)	200	160	8xØ18	315	180	290	26.5	23.2 kg
DN100 (PN10)	220	180	8xØ18	350	200	350	-	33 kg
DN100 (PN16)	220	180	8xØ18	350	200	350	33	33 kg
DN100 (PN25)	235	190	8xØ18	350	200	350	35	33 kg
DN100 (PN40)	235	190	8xØ18	350	200	350	36.3	33 kg
DN125 (PN10)	250	210	8xØ22	400	225	410	-	55 kg
DN125 (PN16)	250	210	8xØ22	400	225	410	55	55 kg
DN125 (PN25)	270	220	8xØ26	400	225	410	58	55 kg
DN125 (PN40)	270	220	8xØ26	400	225	410	60.5	55 kg
DN150 (PN10)	285	240	8xØ22	480	250	430	-	87.5 kg
DN150 (PN16)	285	240	8xØ22	480	250	430	87.5	87.5 kg
DN150 (PN25)	300	250	8xØ26	480	250	430	92	87.5 kg
DN150 (PN40)	300	250	8xØ26	480	250	430	101	87.5 kg
DN200 (PN10)	340	295	12xØ22	600	285	525	-	130 kg
DN200 (PN16)	340	295	12xØ22	600	285	525	136	130 kg
DN200 (PN25)	375	310	12xØ26	600	285	525	150	130 kg
DN200 (PN40)	375	310	12xØ26	600	285	525	164	130 kg
DN250 (PN10)	395	350	12xØ26	730	320	630	-	204 kg
DN250 (PN16)	405	355	12xØ26	730	320	630	212	204 kg
DN250 (PN25)	450	370	12xØ30	730	320	630	230	204 kg
DN250 (PN40)	450	370	12xØ30	730	320	630	235	204 kg
DN300 (PN10)	445	400	12xØ26	850	400	700	-	280 kg
DN300 (PN16)	460	410	12xØ26	850	400	700	290	280 kg
DN300 (PN25)	515	430	16xØ30	850	400	700	300	280 kg
DN300 (PN40)	515	430	16xØ30	850	400	700	315	280 kg
DN350 (PN10)	505	460	16xØ26	980	460	760	-	370 kg
DN350 (PN16)	520	470	16xØ26	980	460	760	380	370 kg
DN350 (PN25)	580	490	16xØ33	980	460	760	395	370 kg
DN350 (PN40)	580	490	16xØ33	980	460	760	410	370 kg
DN400 (PN10)	565	515	16xØ30	1100	-	840	-	505 kg
DN400 (PN16)	580	525	16xØ30	1100	-	840	515	505 kg
DN400 (PN25)	660	550	16xØ36	1100	-	840	530	505 kg
DN400 (PN40)	660	550	16xØ36	1100	-	840	550	505 kg
DN450 (PN10)	615	565	20xØ30	1200	-	915	-	705 kg
DN450 (PN16)	640	585	20xØ33	1200	-	915	715	705 kg
DN450 (PN25)	685	600	20xØ36	1200	-	915	700	705 kg
DN450 (PN40)	685	600	20xØ36	1200	-	915	750	705 kg
DN500 (PN10)	670	620	20xØ30	1250	-	980	-	915 kg
DN500 (PN16)	640	620	20xØ33	1250	-	980	925	915 kg
DN500 (PN25)	755	660	20xØ39	1250	-	980	950	915 kg
DN500 (PN40)	755	660	20xØ39	1250	-	980	970	915 kg
DN600 (PN10)	780	725	20xØ30	1450	640	1200	-	1110 kg
DN600 (PN16)	840	770	20xØ36	1450	640	1200	1125	1110 kg
DN600 (PN25)	890	770	20xØ42	1450	640	1200	1150	1110 kg
DN600 (PN40)	890	795	20xØ42	1450	640	1200	1200	1110 kg

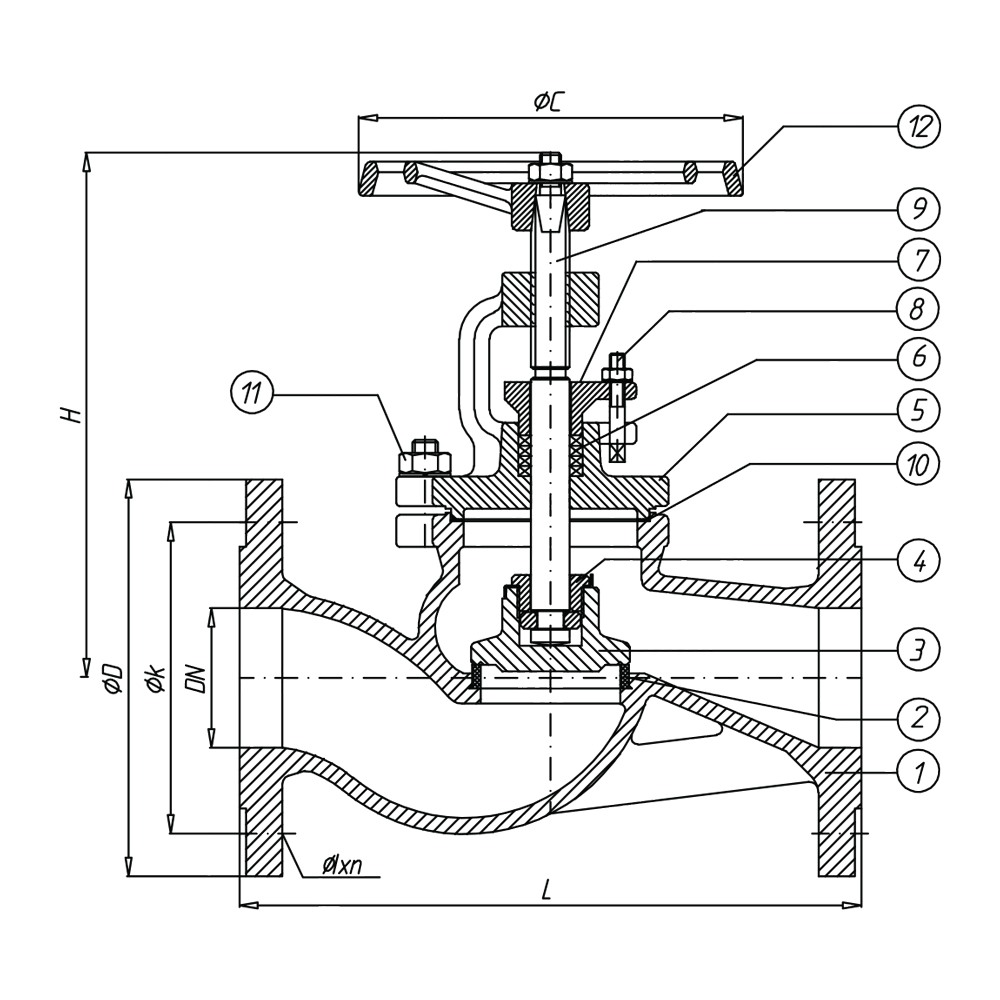

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

Straight flow path (düz tip) globe valve configuration
Regulating disc option available
ANSI flange option available
Graphite packing
Multiple body material options including cast iron, ductile iron, cast steel, stainless steel, bronze and Monel
Multiple seat material options including PTFE, NBR, EPDM and Stellite hard-facing

Description

Straight (düz tip) globe valve available in DN15 to DN600, rated for PN10 to PN40. Flanged ends conforming to DIN EN 1092, with dimensions per DIN 3356/2-F1 and DIN EN 558-1-1. Tested to DIN EN 12266; optional regulating disc and ANSI flange available.

Selection notes

This globe valve is a straight type pattern, supplied for flanged installation.

Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.

The body is offered in GG-25, GGG-40, GS-25 and Bronze, so the grade can be matched to the service rather than the other way round.

Seat and trim options are AISI 304, AISI 316, 13Cr and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to DIN 3356/2-F1, DIN EN 558-1-1, DIN EN 558-1-FTF1, DIN EN 12266 and DIN EN 1092.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Industrial Process
