Straight Type Cast Steel Controlled Check Valve (SDNR)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN250
- Pressure Class
- PN64
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3356
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 2, DIN 3202 F2
- Flange & end dimension
- DIN EN 1092 PN 64
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Spring
- Handwheel
- Gland
- Stud Nut
- T Stud Nut
Dimensions per size(13 sizes)
| Size | L (mm) | H (mm) | D (mm) | k (mm) | d4 (mm) | b (mm) | Strok_max (mm) | Oxn (mm) | OC (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 210 | 230 | 105 | 75 | 45 | 20 | 11 | Ø14x4 | - | 9.5 kg |
| DN20 | 230 | 230 | 130 | 90 | 58 | 24 | 11 | Ø18x4 | 160 | 11 kg |
| DN25 | 230 | 230 | 140 | 100 | 68 | 24 | 11 | Ø18x4 | 160 | 12.5 kg |
| DN32 | 260 | 310 | 155 | 110 | 78 | 26 | 17 | Ø22x4 | 200 | 16.5 kg |
| DN40 | 260 | 310 | 170 | 125 | 88 | 28 | 17 | Ø22x4 | 200 | 20.5 kg |
| DN50 | 300 | 315 | 180 | 135 | 102 | 26 | 22 | Ø22x4 | 200 | 25 kg |
| DN65 | 340 | 420 | 205 | 160 | 122 | 26 | 38 | Ø22x8 | 315 | 40 kg |
| DN80 | 380 | 485 | 215 | 170 | 138 | 28 | 59 | Ø22x8 | 315 | 55 kg |
| DN100 | 430 | 550 | 250 | 200 | 162 | 30 | 68 | Ø26x8 | 400 | 85 kg |
| DN125 | 500 | 625 | 295 | 240 | 188 | 34 | 68 | Ø30x8 | 500 | 125 kg |
| DN150 | 550 | 630 | 345 | 280 | 218 | 36 | 79 | Ø33x8 | 500 | 150 kg |
| DN200 | 650 | 860 | 415 | 345 | 285 | 42 | 128 | Ø36x12 | 630 | 260 kg |
| DN250 | 775 | 900 | 470 | 400 | 345 | 46 | 180 | Ø36x12 | 630 | 375 kg |

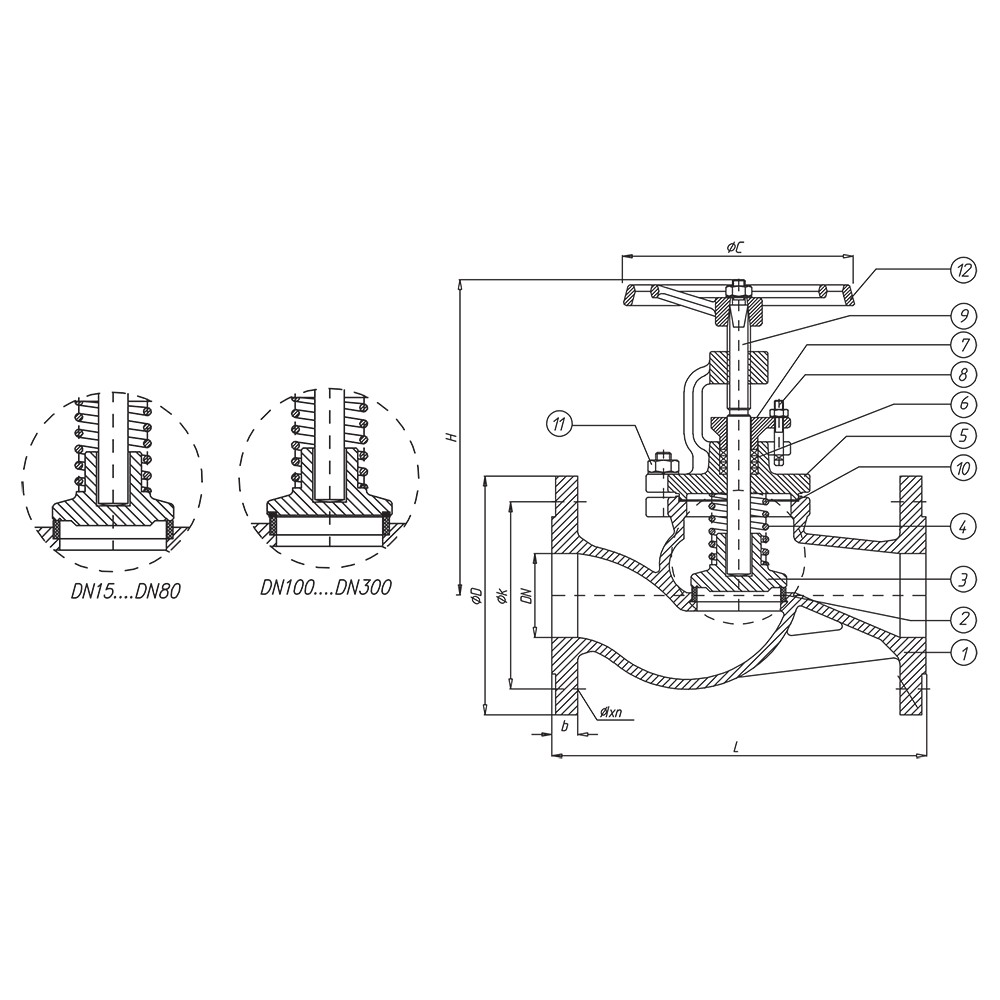

Technical drawings(1 page)
Features
- Straight-pattern (SDNR) flow path configuration
- Controlled check valve function allowing manual operation as well as automatic non-return action
- Graphite packing for stem sealing
- Klingerite/Asberit body-to-bonnet gasket
- Cast steel body and bonnet with stainless steel trim
- Handwheel operator in grey cast iron
- Available in alloy steel materials for high-pressure and high-temperature applications on request
Description
A straight-pattern (SDNR) controlled check valve in cast steel construction, designed to PN 64 pressure rating. The valve complies with DIN 3356 design standard and features flanged end connections per EN 1092-2/B. Available in sizes DN15 to DN250 for globe valve applications.
Selection notes
This globe valve is a controlled check valve, straight type and sdnr pattern, supplied for flanged installation.
Sizes run DN15 to DN250, in PN64.
The body is GS-C 25 (GP240GH+N).
Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN 3356, EN 558 Serie 2, DIN 3202 F2, EN 12266 and DIN EN 1092 PN 64.
