Angle Type Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN600
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3356
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 8, DIN 3202 F32
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(14 sizes)
| Size | L1 (mm) | H1 (mm) | Strok (mm) | OC (mm) | OD_PN16 (mm) | Ok_PN16 (mm) | OD_PN40 (mm) | Ok_PN40 (mm) | PN40 kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 90 | 155 | 7 | 120 | 95 | 65 | 95 | 65 | 4 | 4 kg |
| DN20 | 95 | 155 | 7 | 120 | 105 | 75 | 105 | 75 | 5 | 4 kg |
| DN25 | 100 | 170 | 9 | 140 | 115 | 85 | 115 | 85 | 6 | 5 kg |
| DN32 | 105 | 175 | 11 | 140 | 140 | 100 | 140 | 100 | 8 | 7 kg |
| DN40 | 115 | 195 | 15 | 160 | 150 | 110 | 150 | 110 | 13 | 11 kg |
| DN50 | 125 | 205 | 18 | 160 | 165 | 125 | 165 | 125 | 15 | 13 kg |
| DN65 | 145 | 225 | 23 | 180 | 185 | 145 | 185 | 145 | 23 | 19 kg |
| DN80 | 155 | 250 | 28 | 200 | 200 | 160 | 200 | 160 | 27 | 24 kg |
| DN100 | 175 | 305 | 35 | 225 | 220 | 180 | 235 | 190 | 39 | 33 kg |
| DN125 | 200 | 315 | 43 | 250 | 250 | 210 | 270 | 220 | 58 | 48 kg |
| DN150 | 225 | 380 | 50 | 300 | 285 | 240 | 300 | 250 | 75 | 62 kg |
| DN200 | 275 | 425 | 68 | 400 | 340 | 295 | 375 | 320 | 155 | 128 kg |
| DN250 | 325 | 470 | 80 | 520 | 405 | 355 | 450 | 385 | 162 | 135 kg |
| DN300 | 375 | 675 | 100 | 520 | 460 | 410 | 515 | 450 | 320 | 270 kg |

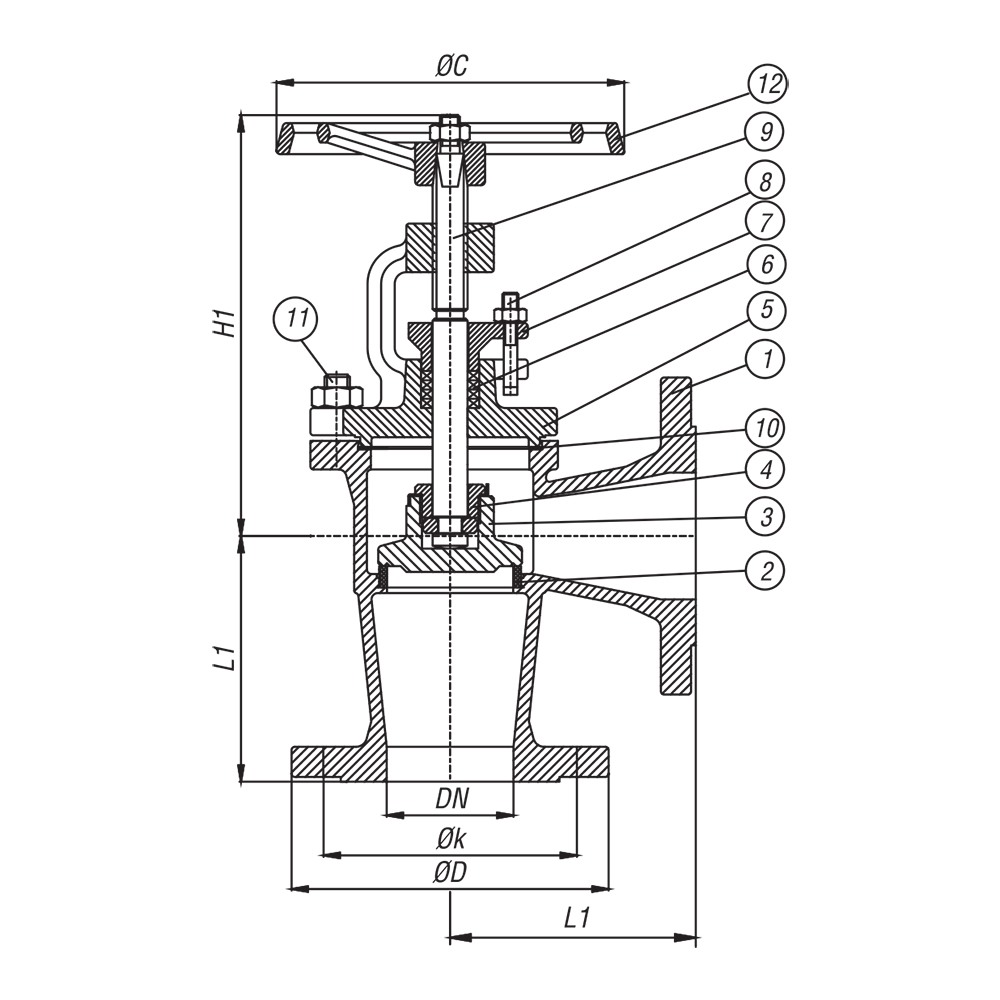

Technical drawings(1 page)
Features
- Angle type body configuration
- Regulating disc option available
- Stroke values specified per size
- Production available up to DN600
Description
Angle type globe valve designed to DIN 3356 with flanged ends conforming to EN 1092-2/B. Available in sizes DN15 to DN600 across pressure ratings PN10, PN16, PN25, and PN40. A regulating disc option is available; testing is performed to EN 12266.
Selection notes
This globe valve is a angle type pattern, supplied for flanged installation.
Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.
The body is offered in GG 25, GGG-40, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Seat and trim options are 1.4301 (SS304) and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN 3356, EN 558 Serie 8, DIN 3202 F32 and EN 12266.
