JIS 5K Straight Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN65
- Pressure Class
- 5K
- End connection
- Flanged
- Operating temperature
- max 205°C
Standards
- Design & manufacture
- JIS F7301, JIS F7351
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240 5K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Gasket
- Handwheel
- Disc Nut
- Gland Nut
- Lock Plate
- Nut
- Packing Gland
- Screw
- Stud Nut
Dimensions per size(7 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 100 | 130 | 80 | 80 | 60 | 2.02 kg |
| DN20 | 110 | 140 | 100 | 85 | 65 | 2.86 kg |
| DN25 | 120 | 160 | 125 | 95 | 75 | 3.54 kg |
| DN32 | 140 | 170 | 125 | 115 | 90 | 5 kg |
| DN40 | 160 | 190 | 140 | 120 | 95 | 6.48 kg |
| DN50 | 210 | 235 | 140 | 130 | 105 | 11.7 kg |
| DN65 | 250 | 260 | 160 | 155 | 130 | 17 kg |

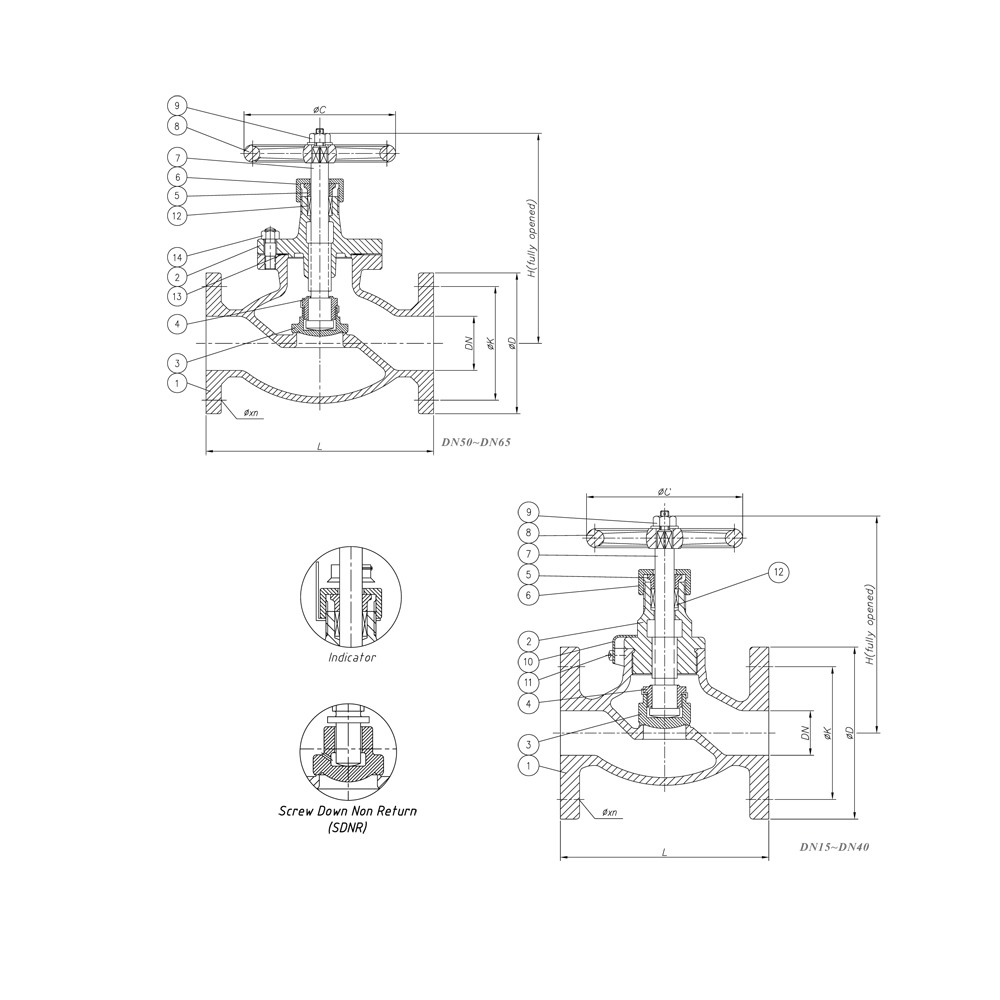

Technical drawings(1 page)
Operating media
Typical applications
- air
- gas
- oil
- pulsation water
- steam
- water
Actuation options
Features
- Available in STOP (JIS F7301) and Screw Down Non Return (SDNR, JIS F7351) configurations
- Graphite packing
- Non-asbestos gasket
- Position indicator fitted to bonnet
- Bronze Rg5 body and bonnet construction
Description
A straight (direct) pattern globe valve designed to JIS F7301 (STOP) and JIS F7351 (SDNR) standards, rated at 5K pressure. Available in DN15 to DN65 with bronze body construction and flanged ends to JIS B2240 5K. Suitable for steam, water, air, gas, oil, and pulsation water service.
Selection notes
This globe valve is a straight pattern, stop and screw down non return (sdnr) pattern, supplied for flanged installation.
Sizes run DN15 to DN65, in 5K.
The body is Bronze Rg5.
Stated service media include steam, water, air, gas, oil and pulsation water.
It is catalogued for Water & Wastewater and Marine & Offshore.
Working temperature is max 205°C.
Built to JIS F7301, JIS F7351, JIS F7400 and JIS B2240 5K.
