Angle Type SDNR Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN600
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3356
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 8, DIN 3202 F32
- Flange & end dimension
- EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Spring
- Handwheel
- Gland
- Stud Nut
- T Stud Nut
Dimensions per size(14 sizes)
| Size | L1 (mm) | H1 (mm) | Strok (mm) | OC (mm) | OD_PN16 (mm) | Ok_PN16 (mm) | OD_PN40 (mm) | Ok_PN40 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 90 | 155 | 7 | 120 | 95 | 65 | 95 | 65 | 0 4 kg 1 4 kg |
| DN20 | 95 | 155 | 7 | 120 | 105 | 75 | 105 | 75 | 0 4 kg 1 5 kg |
| DN25 | 100 | 170 | 9 | 140 | 115 | 85 | 115 | 85 | 0 5 kg 1 6 kg |
| DN32 | 105 | 175 | 11 | 140 | 140 | 100 | 140 | 100 | 0 7 kg 1 8 kg |
| DN40 | 115 | 195 | 15 | 160 | 150 | 110 | 150 | 110 | 0 11 kg 1 13 kg |
| DN50 | 125 | 205 | 18 | 160 | 165 | 125 | 165 | 125 | 0 13 kg 1 15 kg |
| DN65 | 145 | 225 | 23 | 180 | 185 | 145 | 185 | 145 | 0 19 kg 1 23 kg |
| DN80 | 155 | 250 | 28 | 200 | 200 | 160 | 200 | 160 | 0 24 kg 1 27 kg |
| DN100 | 175 | 305 | 35 | 225 | 220 | 180 | 235 | 190 | 0 33 kg 1 39 kg |
| DN125 | 200 | 315 | 43 | 250 | 250 | 210 | 270 | 220 | 0 48 kg 1 58 kg |
| DN150 | 225 | 380 | 50 | 300 | 285 | 240 | 300 | 250 | 0 62 kg 1 75 kg |
| DN200 | 275 | 425 | 68 | 400 | 340 | 295 | 375 | 320 | 0 128 kg 1 155 kg |
| DN250 | 325 | 470 | 80 | 520 | 405 | 355 | 450 | 385 | 0 135 kg 1 162 kg |
| DN300 | 375 | 675 | 100 | 520 | 460 | 410 | 515 | 450 | 0 270 kg 1 320 kg |

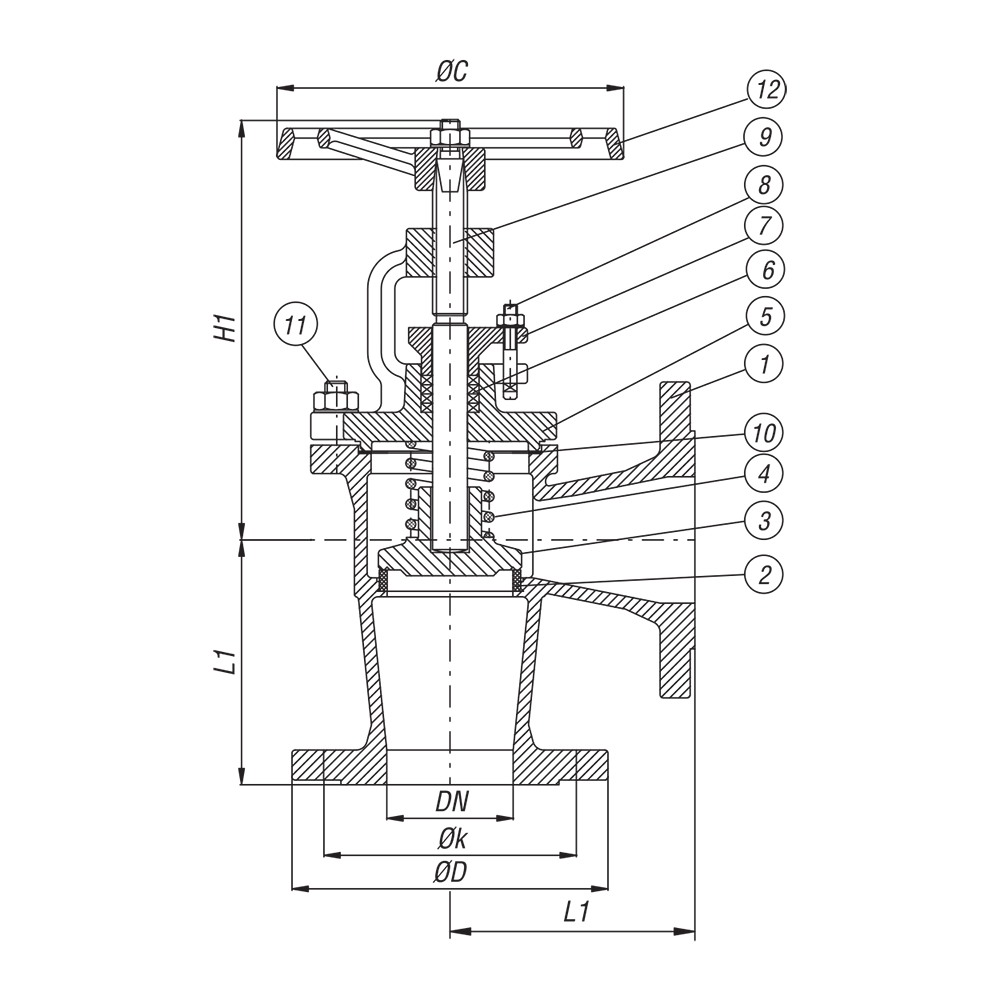

Technical drawings(1 page)
Operating media
Actuation options
Features
- Angle-type body configuration
- Spring-loaded disc providing non-return (SDNR) function
- Graphite packing
- Handwheel override control
- Available with fully stainless steel or bronze disc as option
- Production available up to DN600
Description
An angle-type SDNR (self-draining non-return) globe valve with flanged ends, designed to DIN 3356. Available in pressure ratings PN10 through PN40 and sizes DN15 to DN600, with a handwheel actuator and spring-loaded disc for non-return function.
Selection notes
This globe valve is a angle type, sdnr and non-return pattern, supplied for flanged installation.
Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.
The body is offered in GG 25, GGG40, GGG40,3 and GGG6SC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are 304, 316, 13Cr and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water and general industrial fluids.
It is catalogued for Water & Wastewater.
Built to DIN 3356, EN 558 Serie 8, DIN 3202 F32, EN 12266 and EN 1092-2/B.
Available pressure classes
Pressure classes this product is rated to.
