Y Type Globe Valve9 of 58 globe valvesAngle Type SDNR Globe Valve

Globe Valve

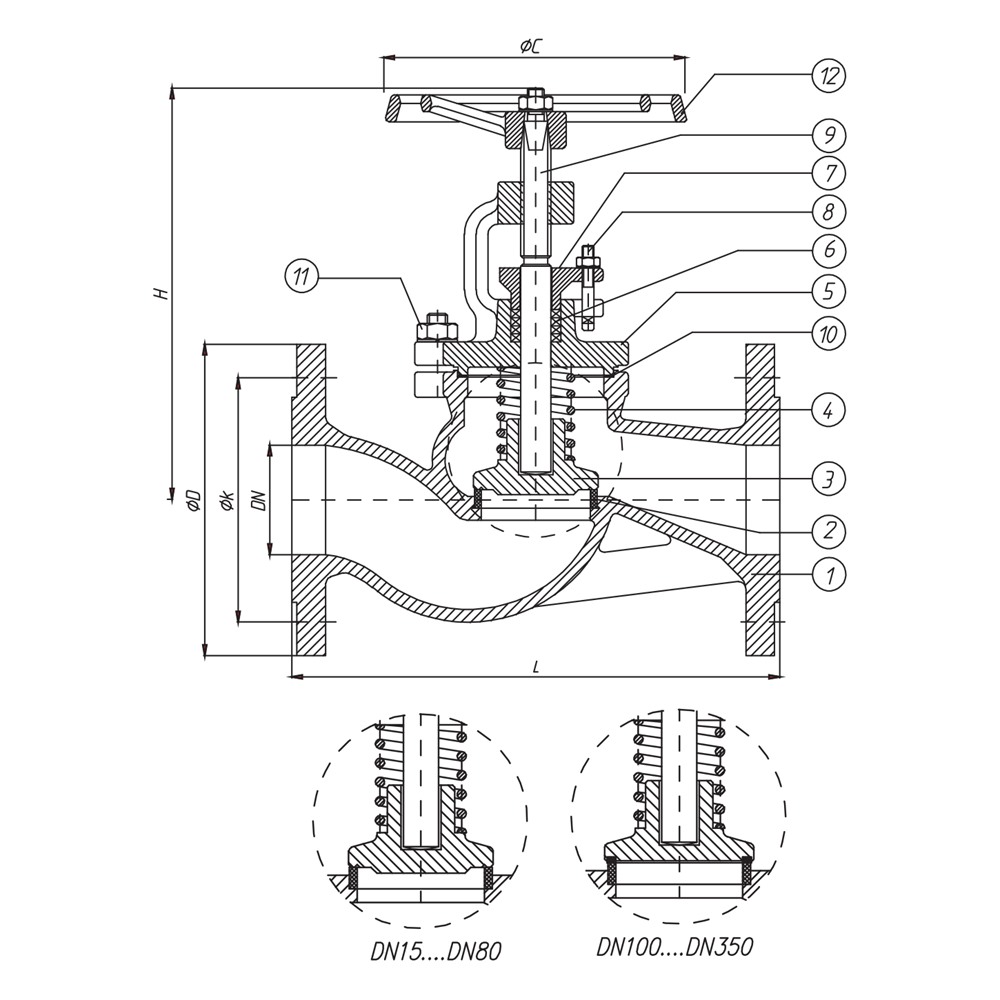

Straight SDNR Globe Valve

Specifications

Confirmed at quote

Size Range: DN15 to DN600
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: DIN 3356/2-F1
Face to face: DIN 3356/2-F1, DIN EN 558-1-FTF1
Flange & end dimension: DIN EN 1092

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Packing
Gasket
Spring
Handwheel
Gland
Stud Nut

Dimensions per size(76 sizes)

Size	D (mm)	k (mm)	bolts	L (mm)	H_max (mm)	OC (mm)	Weight
DN15 (PN10)	95	65	4xO14	130	185	120	3.6 kg
DN15 (PN16)	95	65	4xO14	130	185	120	3.6 kg
DN15 (PN25)	95	65	4xO14	130	185	120	4 kg
DN15 (PN40)	95	65	4xO14	130	185	120	4.7 kg
DN20 (PN10)	105	75	4xO14	150	185	120	4.25 kg
DN20 (PN16)	105	75	4xO14	150	185	120	4.25 kg
DN20 (PN25)	105	75	4xO14	150	185	120	4.5 kg
DN20 (PN40)	105	75	4xO14	150	185	120	5.1 kg
DN25 (PN10)	115	85	4xO14	160	195	120	5.15 kg
DN25 (PN16)	115	85	4xO14	160	195	120	5.15 kg
DN25 (PN25)	115	85	4xO14	160	195	120	5.75 kg
DN25 (PN40)	115	85	4xO14	160	195	120	6.2 kg
DN32 (PN10)	140	100	4xO18	180	205	140	6.75 kg
DN32 (PN16)	140	100	4xO18	180	205	140	6.75 kg
DN32 (PN25)	140	100	4xO18	180	205	140	6.85 kg
DN32 (PN40)	140	100	4xO18	180	205	140	7.2 kg
DN40 (PN10)	150	110	4xO18	200	230	140	9.6 kg
DN40 (PN16)	150	110	4xO18	200	230	140	9.6 kg
DN40 (PN25)	150	110	4xO18	200	230	140	10.2 kg
DN40 (PN40)	150	110	4xO18	200	230	140	11.5 kg
DN50 (PN10)	165	125	4xO18	230	240	160	12 kg
DN50 (PN16)	165	125	4xO18	230	240	160	12 kg
DN50 (PN25)	165	125	4xO18	230	240	160	12.5 kg
DN50 (PN40)	165	125	4xO18	230	240	160	13.2 kg
DN65 (PN10)	185	145	4xO18	290	275	180	16.4 kg
DN65 (PN16)	185	145	4xO18	290	275	180	16.4 kg
DN65 (PN25)	185	145	4xO18	290	275	180	18.5 kg
DN65 (PN40)	185	145	4xO18	290	275	180	21.3 kg
DN80 (PN10)	200	160	8xO18	310	290	200	23.2 kg
DN80 (PN16)	200	160	8xO18	310	290	200	23.2 kg
DN80 (PN25)	200	160	8xO18	310	290	200	25 kg
DN80 (PN40)	200	160	8xO18	310	290	200	26.5 kg
DN100 (PN10)	220	180	8xO18	350	350	225	33 kg
DN100 (PN16)	220	180	8xO18	350	350	225	33 kg
DN100 (PN25)	235	190	8xO22	350	350	225	35 kg
DN100 (PN40)	235	190	8xO22	350	350	225	36.3 kg
DN125 (PN10)	250	210	8xO22	400	410	250	55 kg
DN125 (PN16)	250	210	8xO22	400	410	250	55 kg
DN125 (PN25)	270	220	8xO26	400	410	250	58 kg
DN125 (PN40)	270	220	8xO26	400	410	250	60.5 kg
DN150 (PN10)	285	240	8xO22	480	430	285	87.5 kg
DN150 (PN16)	285	240	8xO22	480	430	285	87.5 kg
DN150 (PN25)	300	250	8xO26	480	430	285	92 kg
DN150 (PN40)	300	250	8xO26	480	430	285	101 kg
DN200 (PN10)	340	295	12xO22	600	525	320	136 kg
DN200 (PN16)	340	295	12xO22	600	525	320	130 kg
DN200 (PN25)	360	310	12xO26	600	525	320	136 kg
DN200 (PN40)	375	320	12xO30	600	525	320	164 kg
DN250 (PN10)	400	350	12xO26	730	630	400	204 kg
DN250 (PN16)	400	355	12xO26	730	630	400	204 kg
DN250 (PN25)	425	370	12xO30	730	630	400	212 kg
DN250 (PN40)	450	385	12xO35	730	630	400	235 kg
DN300 (PN10)	455	400	16xO26	850	700	400	280 kg
DN300 (PN16)	455	410	16xO26	850	700	400	280 kg
DN300 (PN25)	485	430	16xO30	850	700	400	300 kg
DN300 (PN40)	515	450	16xO35	850	700	400	315 kg
DN350 (PN10)	505	460	20xO26	980	760	460	—
DN350 (PN16)	505	470	16xO30	980	760	460	370 kg
DN350 (PN25)	555	490	16xO33	980	760	460	395 kg
DN350 (PN40)	580	510	16xO35	980	760	460	410 kg
DN400 (PN10)	565	515	20xO30	1100	840	640	—
DN400 (PN16)	565	525	16xO33	1100	840	640	505 kg
DN400 (PN25)	620	550	16xO36	1100	840	640	530 kg
DN400 (PN40)	660	585	16xO39	1100	840	640	550 kg
DN450 (PN10)	615	565	20xO33	1200	915	640	—
DN450 (PN16)	615	585	20xO33	1200	915	640	705 kg
DN450 (PN25)	670	600	20xO36	1200	915	640	715 kg
DN450 (PN40)	685	610	20xO39	1200	915	640	750 kg
DN500 (PN10)	670	620	20xO33	1250	980	640	—
DN500 (PN16)	670	650	20xO33	1250	980	640	915 kg
DN500 (PN25)	730	660	20xO36	1250	980	640	950 kg
DN500 (PN40)	755	670	20xO42	1250	980	640	970 kg
DN600 (PN10)	780	725	20xO36	1450	1200	640	—
DN600 (PN16)	780	770	20xO39	1450	1200	640	1110 kg
DN600 (PN25)	845	770	20xO39	1450	1200	640	1125 kg
DN600 (PN40)	890	795	20xO48	1450	1200	640	1200 kg

Actuation options

Manual handwheel

Description

Straight pattern SDNR globe valve available in DN15 to DN600, rated for PN16, PN25, and PN40 pressure classes. Flanged end connections conforming to DIN EN 1092. Face-to-face dimensions per DIN 3356/2-F1 and DIN EN 558-1-FTF1.

Selection notes

This globe valve is a straight pattern and sdnr pattern, supplied for flanged installation.

Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.

The body is offered in GG 25, GGG40, GGG40.3 and GS-C25, so the grade can be matched to the service rather than the other way round.

Seat and trim options are 304, 316, 13Cr and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to DIN 3356/2-F1, DIN EN 558-1-FTF1 and DIN EN 1092.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Industrial Process
