Globe Valve

Y Type Globe Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN300
Pressure Class
PN10, PN16, PN25, PN40
End connection
Flanged

Standards

Design & manufacture
DIN 3356
Inspection & test
EN 12266
Face to face
EN 558 Serie 1, DIN 3202 F1
Flange & end dimension
EN 1092-2/B

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Packing
Gasket
Handwheel
Disc Nut
Gland
Stud Nut
T Stud Nut

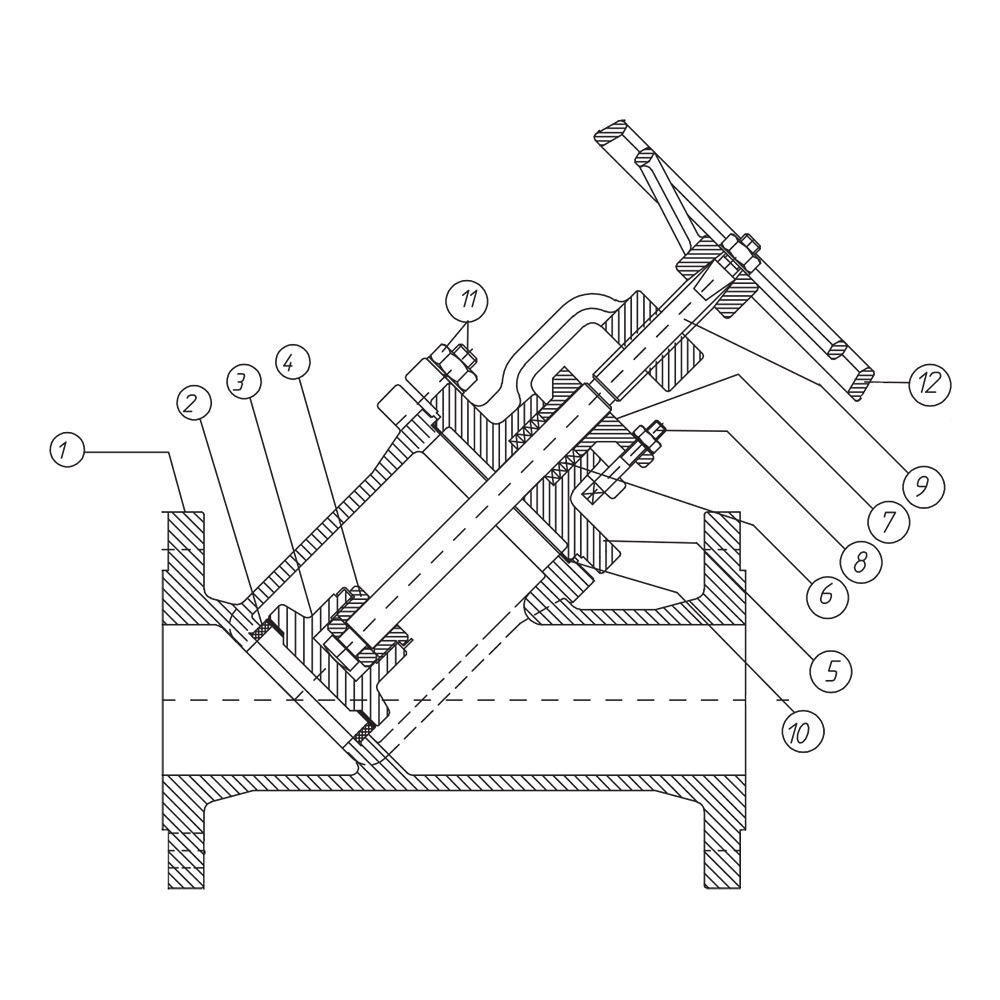

Technical drawings(1 page)

Actuation options

Manual handwheel

Description

A Y-type globe valve with flanged ends, designed to EN 1092-2/B flange standard. Available in pressure ratings PN10, PN16, PN25, and PN40, covering size range DN15 to DN300. Body is cast iron with Stellite seat facing; spindle is stainless steel.

Selection notes

This globe valve is a y type pattern, supplied for flanged installation.

Sizes run DN15 to DN300, in PN10, PN16, PN25, PN40.

The body is G-SC 25(GP240GH+N) + Stellite.

Seat and trim options are 1.4301 (SS304) + Stellite. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to DIN 3356, EN 558 Serie 1, DIN 3202 F1, EN 12266 and EN 1092-2/B.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25PN40

Used in

Industrial Process
