API Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 1/2 to NPS 20
- Pressure Class
- Class 300
- End connection
- Flanged (RF, RTJ) · Butt weld
Standards
- Flange & end dimension
- JIS 20K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
Dimensions per size(18 sizes)
| Size | DN (mm) | L_RF (mm) | L_RTJ (mm) | L_BW (mm) | d (mm) | H (mm) | W (mm) | H1 (mm) | W1 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| NPS 1/2 | 15 | 152 | 164 | 152 | 13 | 184 | 120 | - | - | 5 kg |
| NPS 3/4 | 20 | 178 | 191 | 178 | 19 | 226 | 160 | - | - | 6.5 kg |
| NPS 1 | 25 | 203 | 216 | 203 | 25 | 233 | 160 | - | - | 9 kg |
| NPS 1 1/4 | 32 | 216 | 229 | 216 | 32 | 253 | 160 | - | - | 12 kg |
| NPS 1 1/2 | 40 | 229 | 241 | 229 | 38 | 273 | 160 | - | - | 16 kg |
| NPS 2 | 50 | 267 | 283 | 267 | 51 | 346 | 200 | - | - | 29 kg |
| NPS 2 1/2 | 65 | 292 | 308 | 292 | 64 | 390 | 250 | - | - | 44 kg |
| NPS 3 | 80 | 318 | 333 | 318 | 76 | 403 | 280 | - | - | 59 kg |
| NPS 4 | 100 | 356 | 371 | 356 | 102 | 474 | 350 | - | - | 87 kg |
| NPS 5 | 125 | 400 | 416 | 400 | 127 | 540 | 350 | - | - | 181 kg |
| NPS 6 | 150 | 444 | 460 | 444 | 152 | 635 | 450 | 690 | 310 | — |
| NPS 8 | 200 | 559 | 575 | 559 | 203 | 870 | 550 | 950 | 460 | — |
| NPS 10 | 250 | 622 | 638 | 622 | 254 | 950 | 600 | 990 | 460 | — |
| NPS 12 | 300 | 711 | 727 | 711 | 305 | 1030 | 700 | 1155 | 460 | — |
| NPS 14 | 350 | 838 | - | - | 336 | - | - | 1155 | 600 | — |
| NPS 16 | 400 | 864 | - | - | 387 | - | - | 1325 | 600 | — |
| NPS 18 | 450 | 977 | - | - | 431 | - | 720 | 1473 | - | — |
| NPS 20 | 500 | 1016 | - | - | 482 | - | 720 | 1574 | - | — |

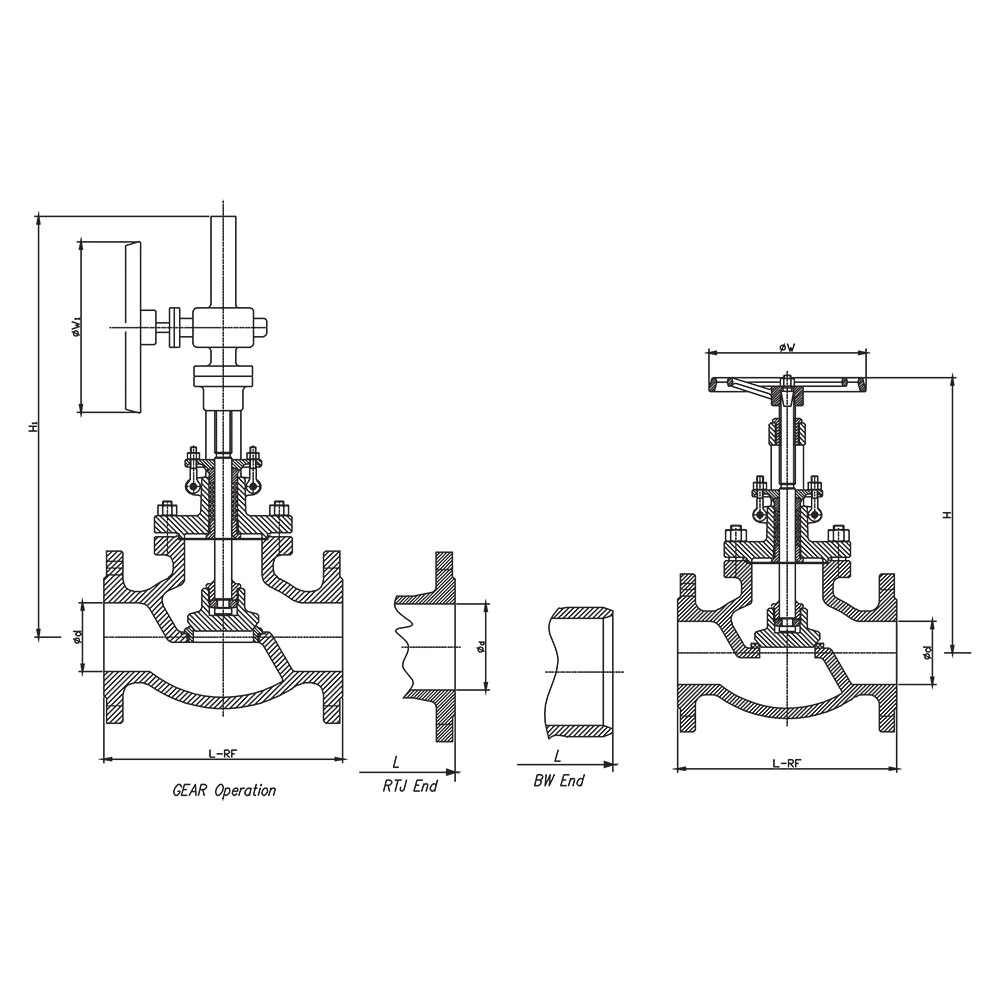

Technical drawings(1 page)
Actuation options
Description
A cast steel globe valve conforming to API standards, available in Class 300 and JIS 20K pressure ratings. Offered in sizes from NPS 1/2 to NPS 20 with flanged (RF/RTJ) and butt-weld (BW) end connections. Actuation options include gear operation, with pneumatic, electric, and hydraulic actuators available on request.
Selection notes
This globe valve is a api and cast steel pattern, supplied for flanged and butt weld installation.
Sizes run NPS 1/2 to NPS 20, in Class 300.
The body is Cast Steel.
It is catalogued for Industrial Process.
Built to JIS 20K.
Supplier remarks
- We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
