API Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 2 to NPS 12
- Pressure Class
- Class 600, Class 900, Class 1500
- End connection
- Flanged (RF, RTJ) · Butt weld
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

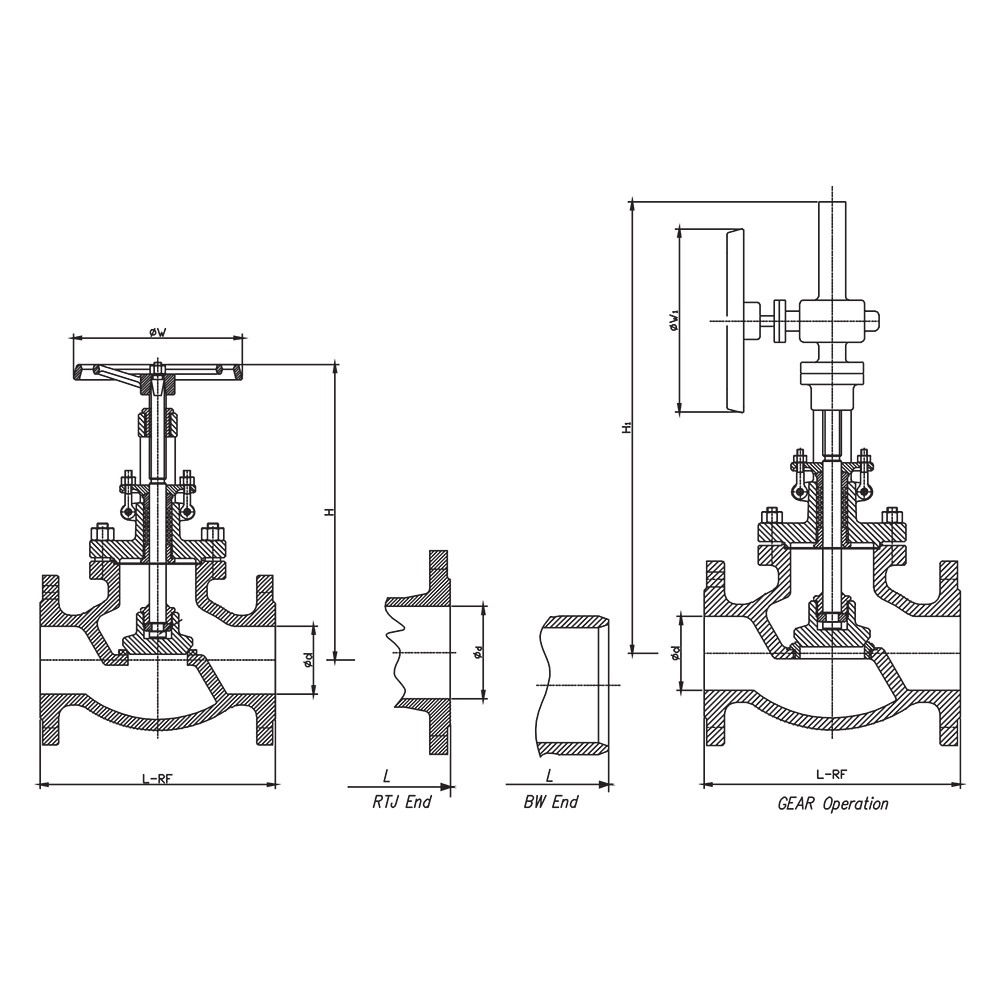

Dimensions per size(22 sizes)
| Size | L_RF (mm) | L_RTJ (mm) | L_BW (mm) | d (mm) | H (mm) | W (mm) | H1 (mm) | W1 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Class 600 NPS 2 / DN50 | 292 | 295 | 292 | 51 | 360 | 250 | - | - | 35 kg |
| Class 600 NPS 2 1/2 / DN65 | 330 | 333 | 330 | 64 | 410 | 280 | - | - | 42 kg |
| Class 600 NPS 3 / DN80 | 356 | 359 | 356 | 76 | 465 | 280 | - | - | 66 kg |
| Class 600 NPS 4 / DN100 | 432 | 435 | 432 | 102 | 545 | 400 | 575 | 310 | 117 kg |
| Class 600 NPS 5 / DN125 | 508 | 511 | 508 | 127 | 625 | 500 | 660 | 310 | 243 kg |
| Class 600 NPS 6 / DN150 | 559 | 562 | 559 | 152 | 785 | 550 | 975 | 460 | 263 kg |
| Class 600 NPS 8 / DN200 | 660 | 664 | 660 | 200 | 930 | 650 | 1120 | 460 | 469 kg |
| Class 600 NPS 10 / DN250 | 787 | 791 | 787 | 248 | - | - | 1219 | 600 | 875 kg |
| Class 600 NPS 12 / DN300 | 838 | 841 | 838 | 298 | - | - | 1570 | 600 | 1280 kg |
| Class 900 NPS 2 / DN50 | 368 | 371 | 368 | 48 | 480 | 350 | - | - | 55 kg |
| Class 900 NPS 2 1/2 / DN65 | 419 | 422 | 419 | 57 | 520 | 350 | - | - | 68 kg |
| Class 900 NPS 3 / DN80 | 381 | 384 | 381 | 73 | 564 | 400 | 630 | 310 | 113 kg |
| Class 900 NPS 4 / DN100 | 457 | 460 | 457 | 98 | 685 | 450 | 720 | 310 | 179 kg |
| Class 900 NPS 5 / DN125 | 559 | 562 | 559 | 127 | 780 | 550 | 840 | 460 | 270 kg |
| Class 900 NPS 6 / DN150 | 610 | 613 | 610 | 146 | 950 | 650 | 1015 | 460 | 429 kg |
| Class 900 NPS 8 / DN200 | 737 | 740 | 737 | 190 | 1050 | 700 | - | - | 815 kg |
| Class 1500 NPS 2 / DN50 | 368 | 371 | 368 | 48 | 505 | 350 | - | - | 137 kg |
| Class 1500 NPS 2 1/2 / DN65 | 419 | 422 | 419 | 57 | 550 | 400 | - | - | 141 kg |
| Class 1500 NPS 3 / DN80 | 470 | 473 | 470 | 70 | 630 | 450 | 765 | 310 | 261 kg |
| Class 1500 NPS 4 / DN100 | 546 | 549 | 546 | 92 | 808 | 460 | 890 | 310 | 336 kg |
| Class 1500 NPS 6 / DN150 | 705 | 711 | 705 | 137 | 930 | 610 | 1020 | 530 | 966 kg |
| Class 1500 NPS 8 / DN200 | 832 | 841 | 832 | 178 | 1140 | 610 | 1230 | 530 | 1210 kg |
Actuation options
Features
- Available in Class 600, Class 900, and Class 1500 pressure ratings
- End connections available as raised face flanged (RF), ring type joint (RTJ), and butt-weld (BW)
- Gear operation available for larger sizes
- Multiple actuator types available on request
Description
API globe valves in pressure Classes 600, 900, and 1500, covering sizes NPS 2 through NPS 12 (Class 600), NPS 2 through NPS 8 (Class 900), and NPS 2 through NPS 8 (Class 1500). End connections: raised face flanged (RF), ring type joint (RTJ), and butt-weld (BW). Actuation options include handwheel and gear operation; pneumatic, electric, and hydraulic actuators available on request.
Supplier remarks
- We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
Available pressure classes
Pressure classes this product is rated to.
