Globe Valve 150Lb
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN400
- Pressure Class
- Class 150
- End connection
- Flanged
Standards
- Design & manufacture
- ANSI B16.10
- Face to face
- ANSI B16.10
- Flange & end dimension
- ANSI B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Bushing
- Packing
- Gasket
- Handwheel
- Back Seat
- Disc Nut
- Gland Flange
- Handwheel Nut
- Nut
- Packing Nut
- Stud
Dimensions per size(16 sizes)
| Size | L (mm) | H (mm) | OD (mm) | Ok (mm) | Og (mm) | b (mm) | OM (mm) | OIxn | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 108 | 185 | 89 | 60.5 | 35 | 10 | - | - | 4 kg |
| DN20 | 117 | 205 | 99 | 70 | 43 | 10.5 | 100 | - | 4.5 kg |
| DN25 | 127 | 210 | 108 | 79.2 | 51 | 11.5 | - | 4 Ø16x4 | 5.5 kg |
| DN32 | 140 | 220 | 117 | 89 | 64 | 13 | 140 | - | 9 kg |
| DN40 | 165 | 240 | 127 | 98.6 | 73 | 14.5 | - | - | 12 kg |
| DN50 | 203 | 330 | 152.5 | 120.7 | 92 | 16 | 200 | - | 17 kg |
| DN65 | 216 | 360 | 178 | 139.7 | 105 | 17.5 | - | 4 Ø19x4 | 23 kg |
| DN80 | 241 | 382 | 190.5 | 152.4 | 127 | 19 | 250 | - | 37 kg |
| DN100 | 292 | 445 | 229 | 190.5 | 157 | 24 | - | 8 Ø19x8 | 47 kg |
| DN125 | 355.6 | 485 | 254 | 216 | 185.7 | 24 | 355 | - | 71 kg |
| DN150 | 406.4 | 540 | 279.5 | 241.3 | 216 | 25.5 | - | - | 86 kg |
| DN200 | 495 | 620 | 343 | 298.5 | 270 | 28.5 | 450 | 8 Ø22x8 | 130 kg |
| DN250 | 622 | 770 | 406.5 | 362 | 324 | 30.2 | - | 12 Ø22.5x12 | 205 kg |
| DN300 | 698.5 | 880 | 483 | 431.8 | 381 | 32 | 550 | - | 325 kg |
| DN350 | 787 | 1100 | 533 | 476 | 413 | 35 | 650 | 12 Ø29x12 | — |
| DN400 | 914 | 1250 | 597 | 539.5 | 470 | 36.6 | - | 16 Ø29x16 | — |

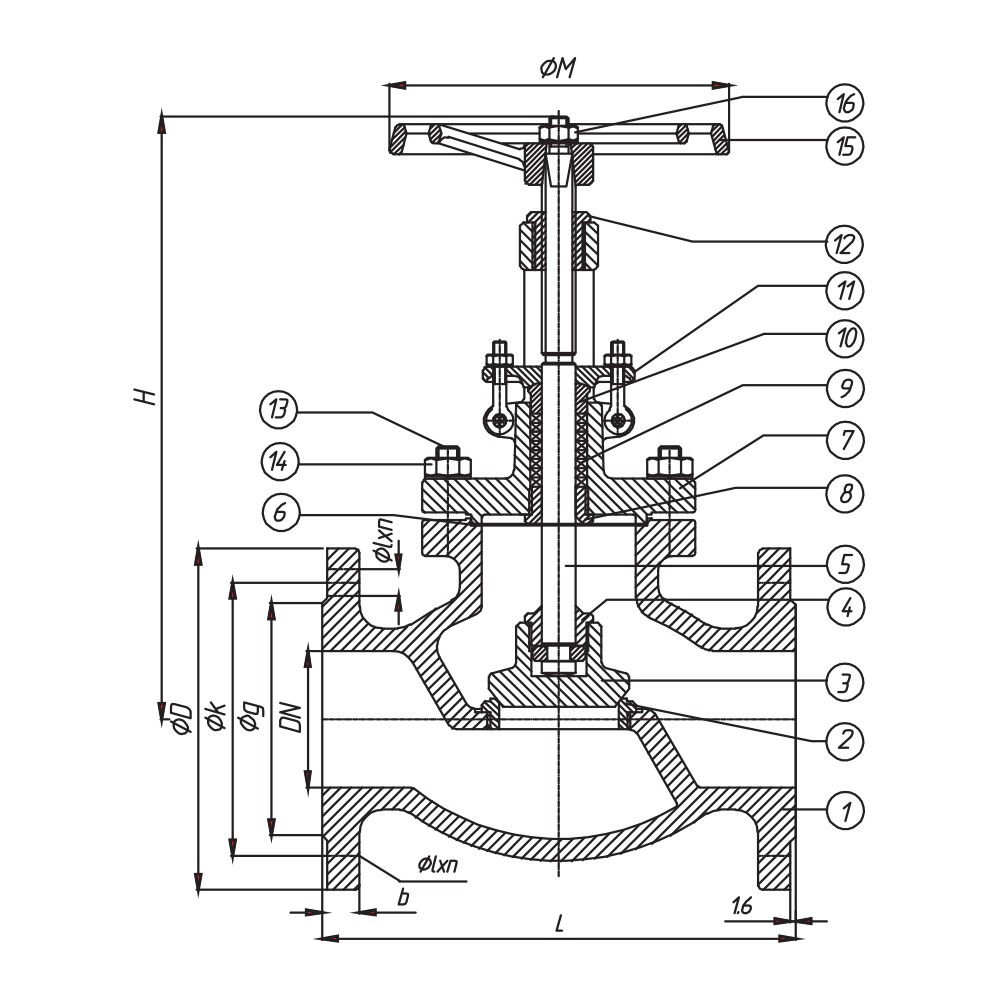

Technical drawings(1 page)
Actuation options
Features
- Bolted bonnet (BB) construction
- Rising stem and handwheel (RS) option
- Outside screw and yoke (OSY) option
- Bolted gland (BG)
- Renewable seat (optional)
- Flanged end connections (FLGD)
Description
A flanged globe valve rated to ANSI Class 150, designed to ANSI B16.10 face-to-face dimensions with flanges to ANSI B16.5. Available with bolted bonnet, rising stem and handwheel (RS) or outside screw and yoke (OSY) configurations. Size range covers DN15 to DN400 with a renewable seat option.
Selection notes
This globe valve is a bolted bonnet and rising stem pattern, supplied for flanged installation.
Sizes run DN15 to DN400, in Class 150.
The body is offered in ASTM A126, ASTM A536 and ASTM A216 WCB, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Rg-5 Bronze (ASTM B62), SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to ANSI B16.10 and ANSI B16.5.
