SS SDNR Globe Valve - BSP
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- 20 Bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Standards
- Other standards
- BSPT
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Gasket
- Handwheel
- Gland
- Gland Nut
- Nameplate
- Nut
Dimensions per size(6 sizes)
| Size | L (mm) | D (mm) | H (mm) | Weight |
|---|---|---|---|---|
| DN15 | 59 | 64 | 90 | — |
| DN20 | 69 | 64 | 95 | — |
| DN25 | 79 | 73 | 105 | — |
| DN32 | 98 | 76 | 125 | — |
| DN40 | 104 | 98 | 135 | — |
| DN50 | 119 | 98 | 145 | — |

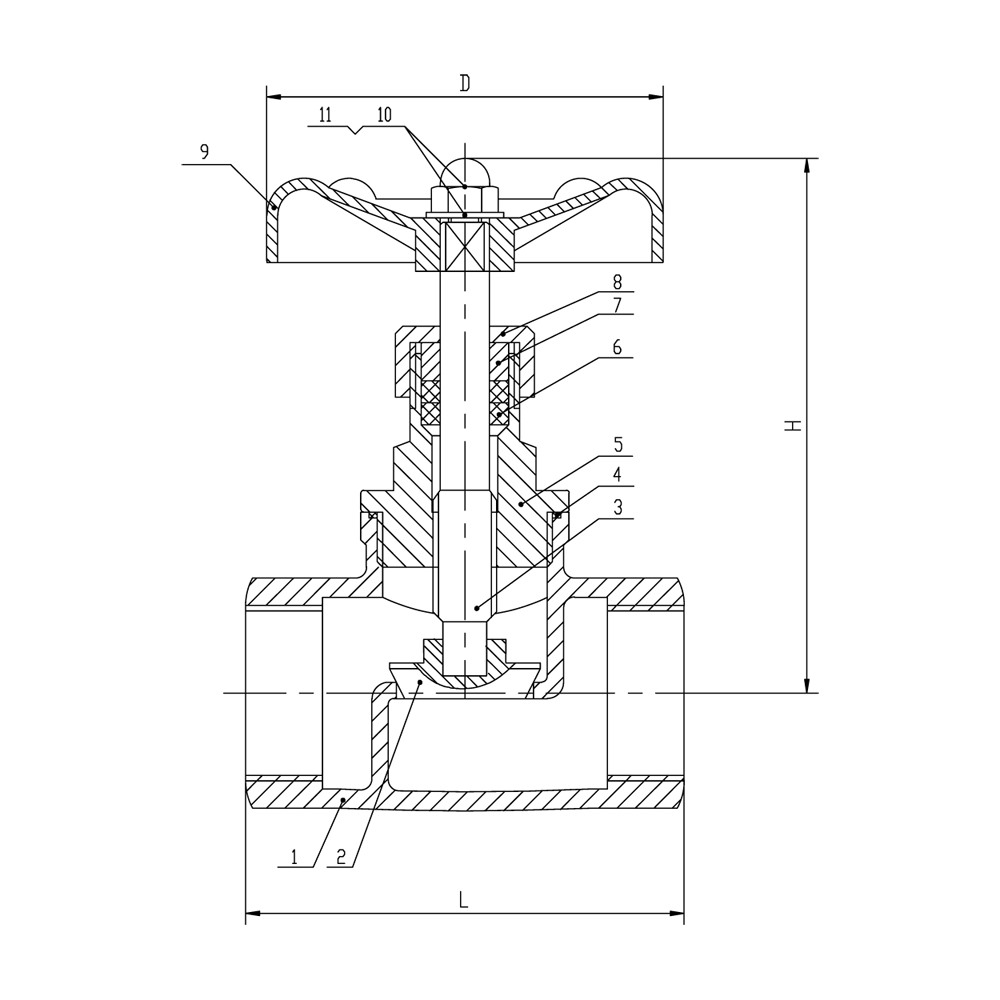

Technical drawings(1 page)
Operating media
Typical applications
- water
- oil
- gas
Actuation options
Description
A stainless steel SDNR globe valve with BSP threaded end connections, rated to 20 bar. Available in sizes DN15 to DN50 with BSPT ends. Suitable for water, oil, and gas applications across a temperature range of -20 to 180°C.
Selection notes
This globe valve is a sdnr pattern, supplied for threaded installation.
Sizes run DN15 to DN50, in 20 Bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
Built to BSPT.
