Globe Valve

SS SDSL Globe Valve - BSP

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN50
Pressure Class
20 bar
End connection
Threaded
Operating temperature
-20°C to 180°C

Standards

Other standards
BS-20, BSPT

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Stem
Packing
Gasket
Handwheel
Gland
Gland Nut
Nameplate
Nut
Dimensions per size(6 sizes)
SizeL (mm)D (mm)H (mm)Weight
DN15596490
—
DN20696495
—
DN257973105
—
DN329876125
—
DN4010498135
—
DN5011998145
—

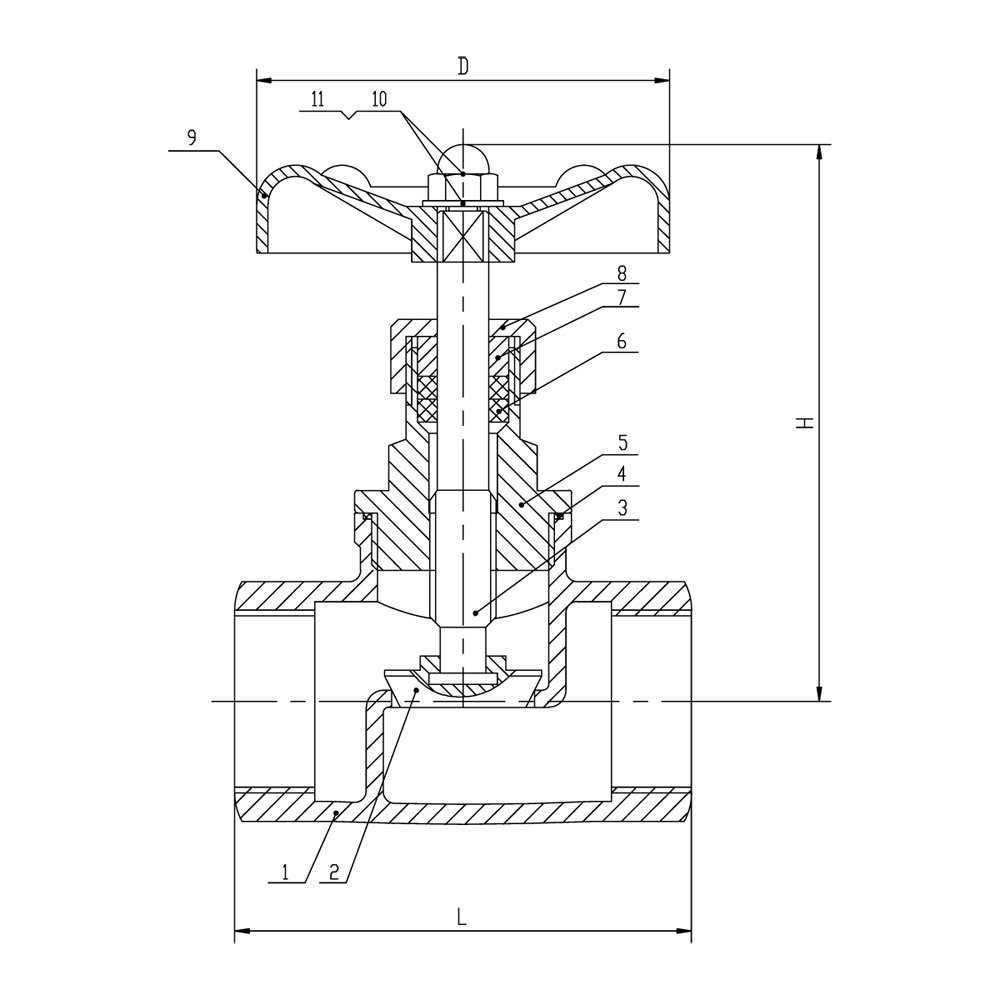

Technical drawings(1 page)

Operating media

WaterOilGas

Typical applications

  • water
  • oil
  • gas

Actuation options

Manual handwheel

Description

A stainless steel threaded globe valve with BSPT end connections, rated to 20 bar. Available in sizes DN15 to DN50 with a temperature range of -20 to 180°C. Suitable for water, oil, and gas applications.

Selection notes

This globe valve is a stainless steel pattern, supplied for threaded installation.

Sizes run DN15 to DN50, in 20 bar.

The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.

Stated service media include water, oil and gas.

It is catalogued for Water & Wastewater and Industrial Process.

Working temperature is -20°C to 180°C.

Built to BS-20 and BSPT.

Used in

Water & WastewaterIndustrial Process
