Bronze Globe Valve Straight Type (Screw Bonnet, Short Type)17 of 58 globe valvesBronze SDNR Globe Valve - BSPT
Globe Valve

Bronze SDSL Globe Valve - BSPT

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN50
Pressure Class
16 bar
End connection
Threaded
Operating temperature
max 170°C

Standards

Other standards
BS-16, BSPT

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Stem
Packing
Handwheel
Nameplate
Nut
Dimensions per size(6 sizes)
SizeL (mm)OD (mm)H (mm)Weight
DN15495271
—
DN20566073
—
DN25666587
—
DN32747095
—
DN408578110
—
DN5010092124
—

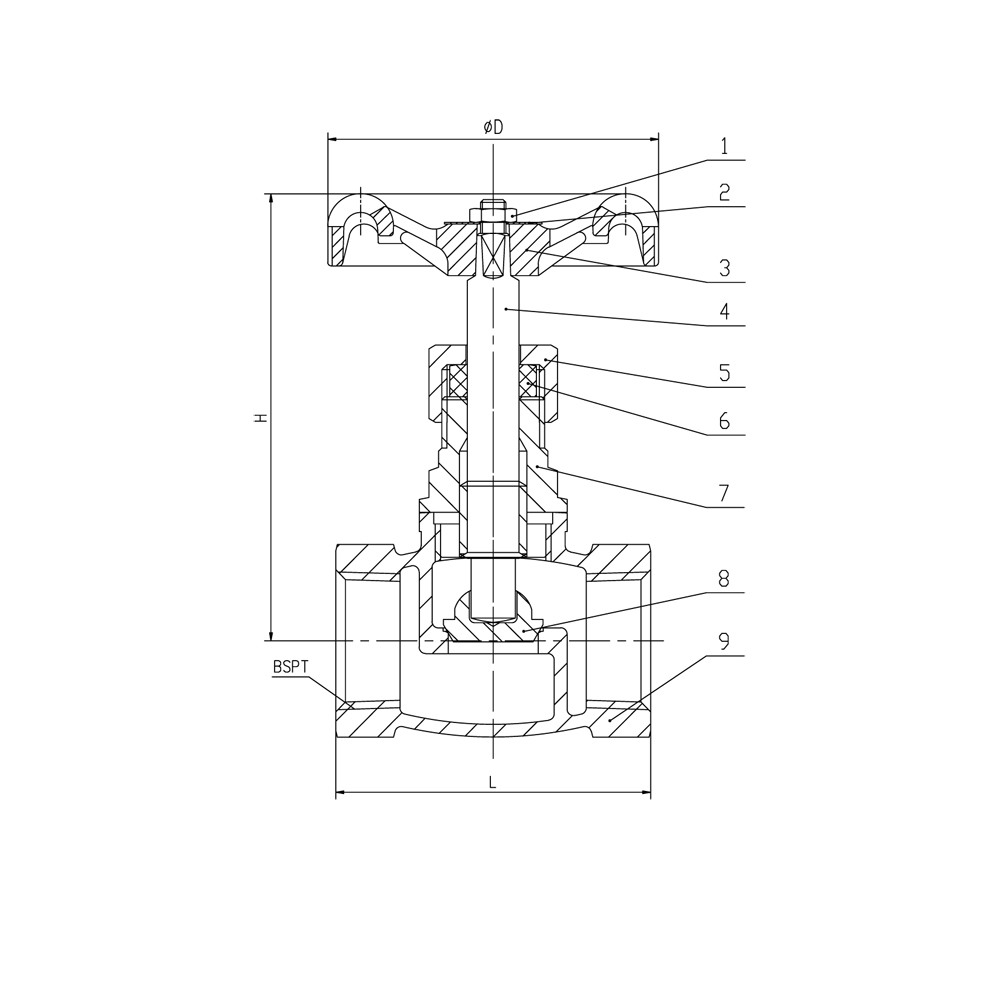

Technical drawings(1 page)

Operating media

WaterOilGas

Typical applications

  • water
  • oil and gas

Actuation options

Manual handwheel

Description

A bronze globe valve with BSPT threaded end connections, rated at 16 bar. Available in sizes DN15 to DN50 with a Bronze Rg5 body, bonnet, and disc. Suitable for water, oil, and gas applications up to 170°C.

Selection notes

This globe valve is a bspt pattern, supplied for threaded installation.

Sizes run DN15 to DN50, in 16 bar.

The body is Bronze Rg5.

Stated service media include water, oil and gas.

It is catalogued for Water & Wastewater, Marine & Offshore, HVAC and Industrial Process.

Working temperature is max 170°C.

Built to BS-16 and BSPT.

Used in

Water & WastewaterMarine & OffshoreHVACIndustrial Process
