JIS 10K Straight Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN300
- Pressure Class
- 10K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7307 STOP, JIS F7375 SDNR
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2239 10K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt Nut
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(9 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Øxn (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 220 | 260 | 160 | 155 | 120 | Ø19x4 | 12.4 kg |
| DN65 | 270 | 300 | 180 | 175 | 140 | Ø19x4 | 18.2 kg |
| DN80 | 300 | 315 | 200 | 185 | 150 | Ø19x8 | 24.1 kg |
| DN100 | 350 | 340 | 220 | 210 | 175 | Ø19x8 | 31.1 kg |
| DN125 | 420 | 400 | 250 | 250 | 210 | Ø23x8 | 47.5 kg |
| DN150 | 490 | 460 | 300 | 280 | 240 | Ø23x8 | — |
| DN200 | 570 | 550 | 400 | 330 | 290 | Ø23x12 | — |
| DN250 | 740 | 680 | 400 | 400 | 355 | Ø25x12 | — |
| DN300 | 840 | 770 | 500 | 445 | 400 | Ø25x16 | — |

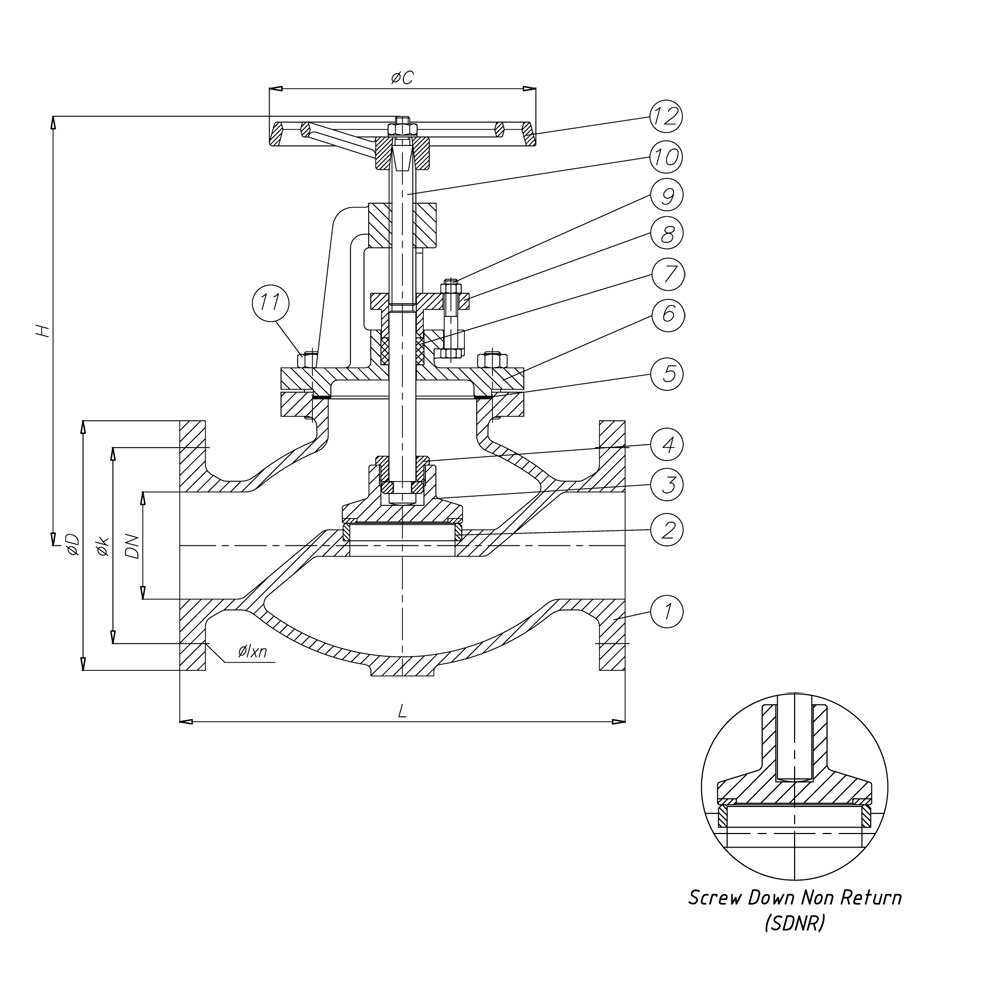

Technical drawings(1 page)
Operating media
Typical applications
- aboard ships
- hot and cold water systems
- oil systems
- steam systems
Actuation options
Features
- Straight (inline) flow pattern globe valve
- Available as STOP (JIS F7307) or Screw Down Non Return / SDNR (JIS F7375) configuration
- Flanged ends to JIS B2239 10K
- Graphite packing for stem sealing
- Klingerite bonnet gasket
Description
A straight (inline) globe valve designed to JIS F7307 (STOP) and JIS F7375 (SDNR) standards, rated at 10K pressure class. Available in sizes DN50 to DN300 with JIS B2239 flanged ends, intended for use aboard ships with hot and cold water, oil, and steam media.
Selection notes
This globe valve is a straight pattern, screw down non return (sdnr) and marine pattern, supplied for flanged installation.
Sizes run DN50 to DN300, in 10K.
The body is offered in GG 25, GGG 40 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze Rg5, 13Cr and SS 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, hot water, cold water, oil and steam.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7307 STOP, JIS F7375 SDNR, JIS F7400 and JIS B2239 10K.
