Angle Type Globe Valve 150LB
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN350
- Pressure Class
- Class 150, Class 300
- End connection
- Flanged
Standards
- Inspection & test
- API 598
- Face to face
- ANSI B16.10, BS 1873, ASME B16.34
- Flange & end dimension
- ANSI B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Disc Nut
- Gland
- Stud Nut
- T Stud Nut
Dimensions per size(15 sizes)
| Size | L_C150 (mm) | L_C300 (mm) | OC (mm) | H_max (mm) | D_C150 (mm) | k_C150 (mm) | C150 bolts | D_C300 (mm) | k_C300 (mm) | C300 bolts | C300 kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 57 | 76 | 120 | 155 | 89 | 60.5 | 4xØ16 | 95 | 67 | 4xØ16 | 95 | 4 kg |
| DN20 | 64 | 89 | 120 | 155 | 99 | 70 | 4xØ16 | 117 | 83 | 4xØ16 | 4.5 | 4.5 kg |
| DN25 | 70 | 102 | 140 | 170 | 108 | 79.2 | 4xØ16 | 124 | 89 | 4xØ19 | 5.5 | 5.5 kg |
| DN32 | 76 | 108 | 140 | 175 | 117 | 89 | 4xØ16 | 133 | 99 | 4xØ19 | 8 | 8 kg |
| DN40 | 83 | 114 | 160 | 195 | 127 | 98.6 | 4xØ19 | 155 | 127 | 4xØ22 | 11 | 11 kg |
| DN50 | 102 | 133 | 160 | 205 | 152 | 120.7 | 4xØ19 | 165 | 149.4 | 8xØ19 | 13 | 13 kg |
| DN65 | 108 | 146 | 180 | 225 | 178 | 139.7 | 4xØ19 | 191 | 168 | 8xØ22 | 19 | 19 kg |
| DN80 | 121 | 159 | 200 | 250 | 191 | 152.4 | 8xØ19 | 210 | 200.2 | 8xØ22 | 26 | 26 kg |
| DN100 | 146 | 178 | 225 | 305 | 229 | 190.5 | 8xØ19 | 254 | 235 | 12xØ22 | 37 | 37 kg |
| DN125 | 178 | 208 | 250 | 315 | 254 | 216 | 8xØ22 | 279 | 269.7 | 12xØ25 | 53 | 53 kg |
| DN150 | 203 | 222 | 285 | 380 | 279 | 241.3 | 8xØ22 | 355.6 | 317.5 | 12xØ25 | 70 | 70 kg |
| DN200 | 248 | 279 | 340 | 425 | 343 | 298.5 | 8xØ22 | 419.1 | 381 | 16xØ28 | 145 | 140 kg |
| DN250 | 311 | 330 | 405 | 470 | 406.4 | 362 | 12xØ25 | 508 | 450.9 | 16xØ32 | 160 | 150 kg |
| DN300 | 349 | 356 | 460 | 675 | 483 | 476.3 | 12xØ25 | 521 | 514.4 | 20xØ32 | 310 | 300 kg |
| DN350 | 394 | 411 | 460 | 785 | 533.4 | 476.3 | 12xØ28 | 584 | 539.8 | - | 430 | 415 kg |

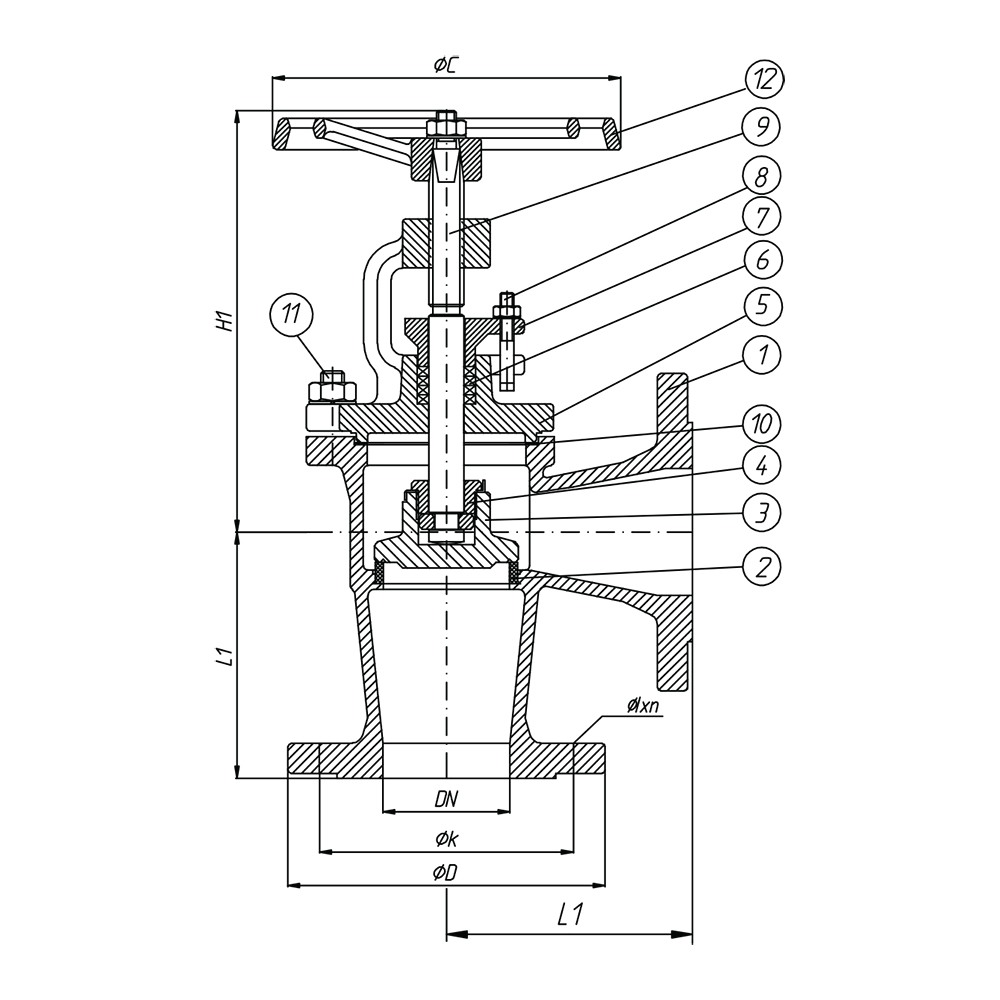

Technical drawings(1 page)
Actuation options
Description
Angle type globe valve available in Class 150 and Class 300 pressure ratings, covering size range DN15 to DN300. Flanged end connections conforming to ANSI B16.5. Body materials include cast iron, carbon steel, and stainless steel options.
Selection notes
This globe valve is a angle type pattern, supplied for flanged installation.
Sizes run DN15 to DN350, in Class 150, Class 300.
The body is offered in ASTM A126, A536, A216 WCB and B62, so the grade can be matched to the service rather than the other way round.
Seat and trim options are ASTM B62, 13Cr, ASI 304 and ASI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to ANSI B16.10, BS 1873, ASME B16.34, API 598 and ANSI B16.5.
