Angle Type Globe Valve 300LB
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN300
- Pressure Class
- Class 300
- End connection
- Flanged
Standards
- Design & manufacture
- ASME B16.34
- Inspection & test
- API 598
- Face to face
- ANSI B16.10 CTC, BS 1873, ASME B16.34
- Flange & end dimension
- ANSI B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Disc Nut
- Gland
- Handwheel
- Stud Nut
- T Stud Nut
Dimensions per size(14 sizes)
| Size | L_C300 (mm) | OC (mm) | H_max (mm) | D (mm) | k (mm) | C300 bolts | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 76 | 120 | 155 | 95 | 67 | Ø16x4 | 95 kg |
| DN20 | 89 | 120 | 155 | 117 | 83 | Ø19x4 | 4.5 kg |
| DN25 | 102 | 140 | 170 | 124 | 89 | Ø22x4 | 5.5 kg |
| DN32 | 108 | 140 | 175 | 133 | 99 | Ø22x4 | 8 kg |
| DN40 | 114 | 160 | 195 | 155 | 127 | Ø19x8 | 11 kg |
| DN50 | 133 | 160 | 205 | 165 | 127 | Ø19x8 | 13 kg |
| DN65 | 146 | 180 | 225 | 191 | 149.4 | Ø22x8 | 19 kg |
| DN80 | 159 | 200 | 250 | 210 | 168 | Ø22x8 | 26 kg |
| DN100 | 178 | 225 | 305 | 254 | 200.2 | Ø22x8 | 37 kg |
| DN125 | 208 | 250 | 315 | 279 | 235 | Ø25x12 | 53 kg |
| DN150 | 222 | 285 | 380 | 318 | 269.7 | Ø25x12 | 70 kg |
| DN200 | 279 | 340 | 425 | 381 | 330.2 | Ø28x16 | 145 kg |
| DN250 | 330 | 405 | 470 | 445 | 387.4 | Ø32x16 | 160 kg |
| DN300 | 368 | 460 | 675 | 521 | 451 | Ø32x20 | 310 kg |

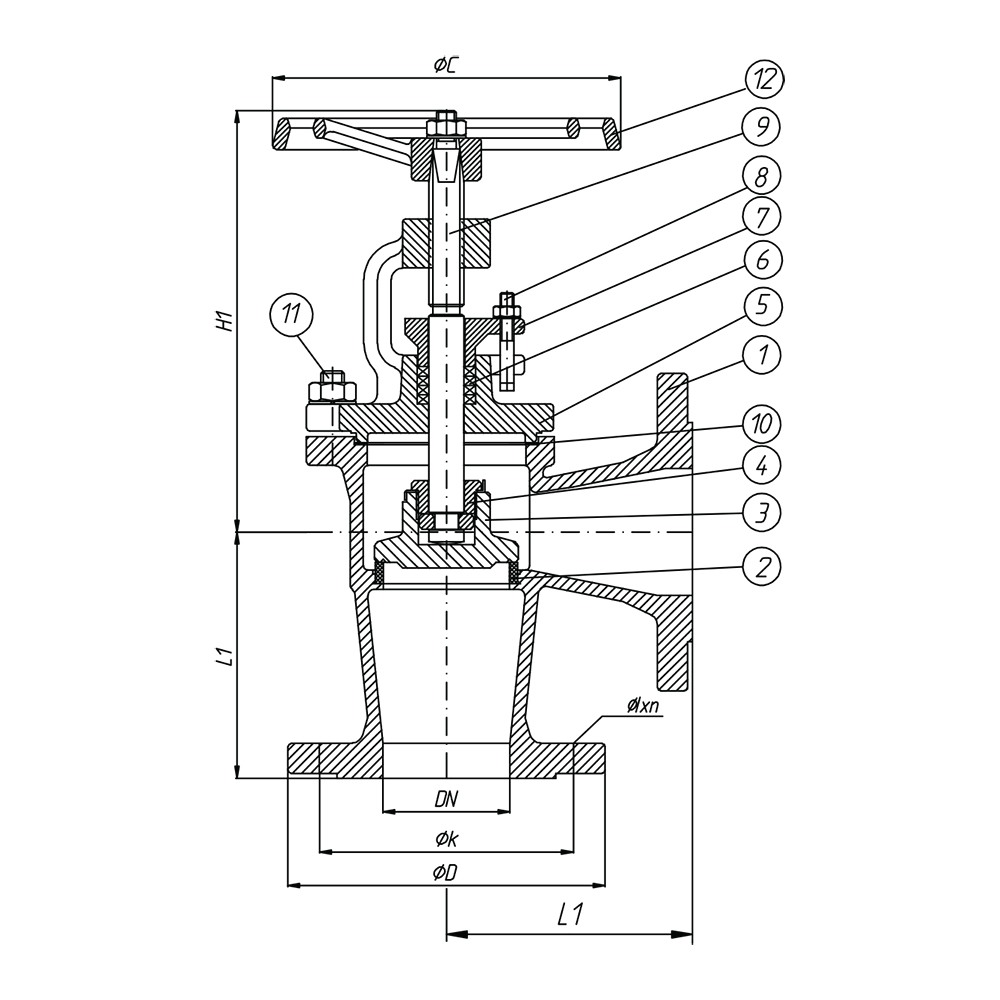

Technical drawings(1 page)
Actuation options
Approvals
Description
Angle type globe valve rated to Class 300 with flanged ANSI B16.5 end connections. Available in sizes DN15 to DN300 with body materials including carbon steel, cast steel, bronze, and stainless steel variants. Designed and tested to ANSI B16.10 / ASME B16.34 dimensional standards and API 598 test standard.
Selection notes
This globe valve is a angle type pattern, supplied for flanged installation.
Sizes run DN15 to DN300, in Class 300.
The body is offered in ASTM A126, A536, A216 WCB and B62, so the grade can be matched to the service rather than the other way round.
Seat and trim options are ASTM B62, 13Cr, ASI 304 and ASI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to ASME B16.34, ANSI B16.10 CTC, BS 1873, API 598 and ANSI B16.5.
