Angle Type SDNR Globe Valve 150 Lb
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN300
- Pressure Class
- Class 150
- End connection
- Flanged
Standards
- Inspection & test
- API 598
- Face to face
- ASME B16.10
- Flange & end dimension
- ASME B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Spring
- Handwheel
- Gland
- Stud Nut
- T Stud Nut
Dimensions per size(14 sizes)
| Size | L1 (mm) | OC (mm) | H1max (mm) | OD (mm) | Ok (mm) | Og (mm) | b (mm) | Olxn (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 57 | 120 | 155 | 89 | 60.5 | 35 | 10 | - | 4 kg |
| DN20 | 64 | 120 | 155 | 99 | 70 | 43 | 10.5 | - | 4.5 kg |
| DN25 | 70 | 140 | 170 | 108 | 79.2 | 51 | 11.5 | - | 5.5 kg |
| DN32 | 32 | 140 | 175 | 117 | 89 | 64 | 13 | - | 7 kg |
| DN40 | 83 | 160 | 195 | 127 | 98.6 | 73 | 14.5 | - | 11 kg |
| DN50 | 102 | 160 | 205 | 152 | 120.7 | 92 | 16 | - | 13.5 kg |
| DN65 | 108 | 180 | 225 | 178 | 139.7 | 105 | 18 | - | 19 kg |
| DN80 | 124 | 200 | 250 | 191 | 152.4 | 127 | 19.5 | - | 24 kg |
| DN100 | 146 | 225 | 305 | 229 | 190.5 | 157 | 24 | - | 33 kg |
| DN125 | 178 | 250 | 315 | 254 | 216 | 186 | 24 | - | 48 kg |
| DN150 | 203 | 285 | 380 | 279 | 241.3 | 216 | 25.5 | - | 62 kg |
| DN200 | 248 | 340 | 425 | 343 | 298.5 | 270 | 29 | - | 128 kg |
| DN250 | 311 | 405 | 470 | 406 | 362 | 324 | 30.5 | - | 135 kg |
| DN300 | 349 | 460 | 675 | 483 | 431.8 | 381 | 32 | - | 270 kg |

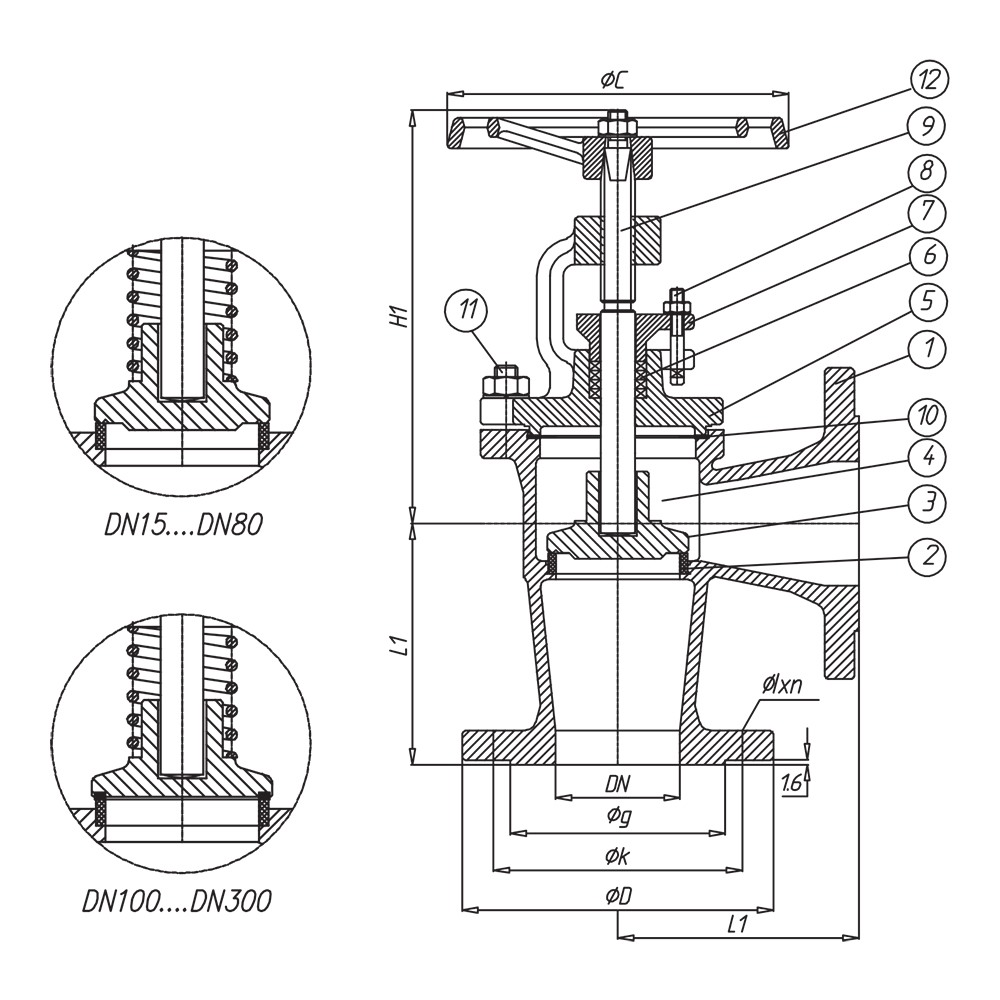

Technical drawings(1 page)
Features
- Angle type body configuration
- SDNR (Screw-Down Non-Return) disc arrangement
- Fully stainless steel or bronze discs available as option in DN80 and larger sizes
- Two body sub-types: DN15 - DN80 and DN100 - DN300 (different bolt pattern configuration)
Description
Angle type SDNR globe valve rated to CLASS 150 (PN 20), available in sizes DN15 to DN300. Body materials include carbon steel, bronze, and stainless steel options. End connections conform to ASME B16.5 with face-to-face dimensions per ASME B16.10.
Selection notes
This globe valve is a angle type and sdnr pattern, supplied for flanged installation.
Sizes run DN15 to DN300, in Class 150.
The body is offered in ASTM A126, A536, A216 WCB and B62, so the grade can be matched to the service rather than the other way round.
Seat and trim options are ASTM B62, 13Cr, AISI 304 and AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to ASME B16.10, API 598 and ASME B16.5.
