Straight Type SDNR Globe Valve 150Lb
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN400
- Pressure Class
- Class 150
- End connection
- Flanged
Standards
- Design & manufacture
- ANSI B16.10
- Inspection & test
- API 598
- Face to face
- ANSI B16.10
- Flange & end dimension
- ANSI B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Bushing
- Packing
- Gasket
- Spring
- Handwheel
- Back Seat
- Gland Flange
- Handwheel Nut
- Nut
- Packing Nut
- Stud
Dimensions per size(16 sizes)
| Size | L (mm) | H (mm) | OD (mm) | Ok (mm) | Og (mm) | b (mm) | OM (mm) | OIxn (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 108 | 185 | 89 | 60.5 | 35 | 10 | - | - | 4 kg |
| DN20 | 117 | 205 | 99 | 70 | 43 | 10.5 | 100 | - | 4.5 kg |
| DN25 | 127 | 210 | 108 | 79.2 | 51 | 11.5 | - | - | 5.5 kg |
| DN32 | 140 | 220 | 117 | 89 | 64 | 13 | 140 | Ø16x4 | 8.5 kg |
| DN40 | 165 | 240 | 127 | 98.6 | 73 | 14 | - | - | 12 kg |
| DN50 | 203 | 330 | 152.5 | 120.7 | 92 | 16 | 200 | - | 18 kg |
| DN65 | 216 | 360 | 178 | 139.7 | 105 | 17.5 | - | Ø19x4 | 23 kg |
| DN80 | 241 | 375 | 190.5 | 152.4 | 127 | 19 | 250 | - | 35 kg |
| DN100 | 292 | 435 | 229 | 190.5 | 157 | 24 | - | Ø19x8 | 45 kg |
| DN125 | 355.6 | 485 | 254 | 216 | 185.7 | 24 | 350 | - | 70 kg |
| DN150 | 406.4 | 530 | 279.5 | 241.3 | 216 | 25.5 | - | - | 86 kg |
| DN200 | 495 | 615 | 343 | 298.5 | 270 | 28.5 | 450 | Ø22x8 | 130 kg |
| DN250 | 622 | 770 | 406.5 | 362 | 324 | 30.2 | - | - | 205 kg |
| DN300 | 698.5 | 880 | 483 | 431.8 | 381 | 32 | 500 | Ø25.5x12 | 325 kg |
| DN350 | 787 | 1100 | 533 | 476 | 413 | 35 | 650 | Ø29x12 | 650 kg |
| DN400 | 914 | 1220 | 597 | 539.5 | 470 | 36.6 | - | Ø29x16 | 1050 kg |

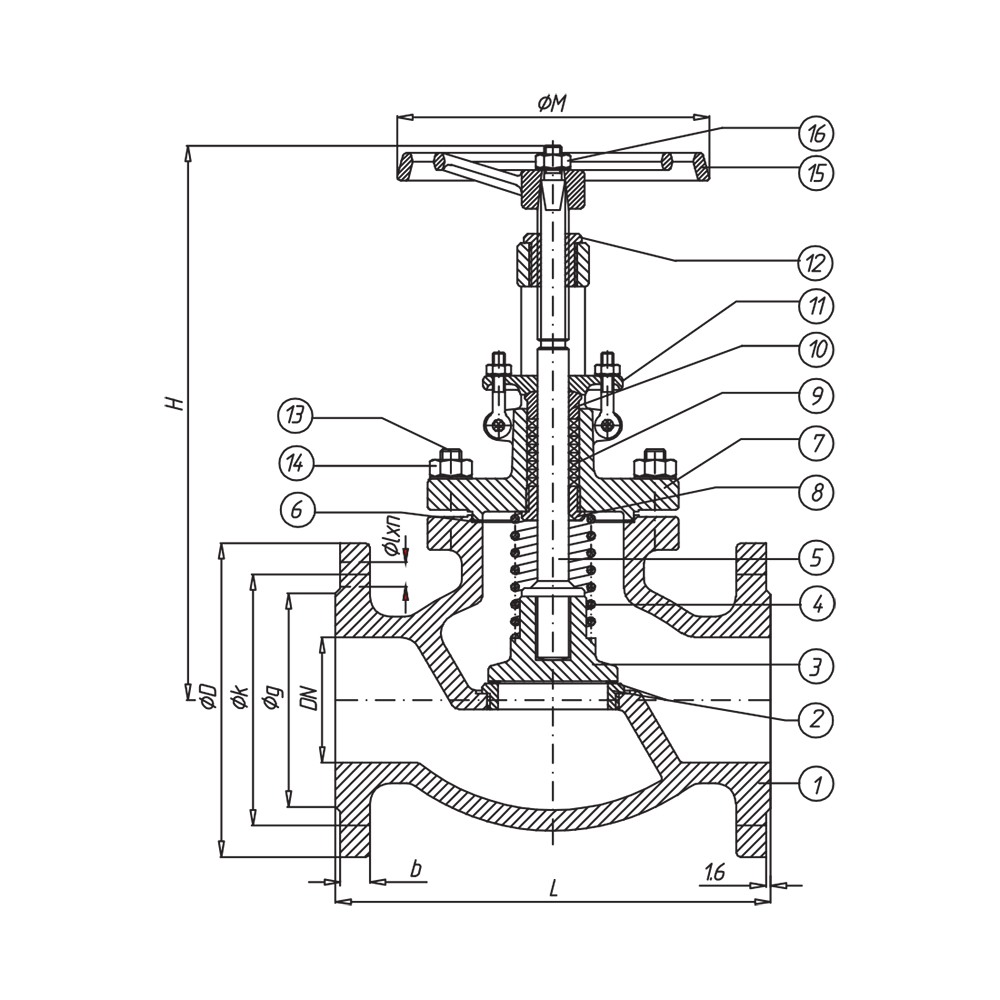

Technical drawings(1 page)
Actuation options
Approvals
Features
- Conical disc design
- Bolted bonnet (BB)
- Outside screw and yoke (OSY)
- Rising stem with handwheel
- Bolted gland arrangement (BG)
- Back seat provided
- Totally stainless steel or bronze discs optional in DN80 (3") and larger sizes
- Graphite packing
Description
Straight-pattern (SDNR) globe valve with conical disc and bolted bonnet (BB), designed for flanged end connections to Class 150. Features outside screw and yoke (OSY) with rising stem and handwheel (RS). Tested to API 598 with bolted gland arrangement (BG) per ANSI B16.10 face-to-face and ANSI B16.5 flange dimensions.
Selection notes
This globe valve is a straight type, sdnr and check valve pattern, supplied for flanged installation.
Sizes run DN15 to DN400, in Class 150.
The body is offered in ASTM A126, A536, A216 WCB and B62, so the grade can be matched to the service rather than the other way round.
Seat and trim options are ASTM B62, 13Cr, AISI 304 and AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to ANSI B16.10, API 598 and ANSI B16.5.
