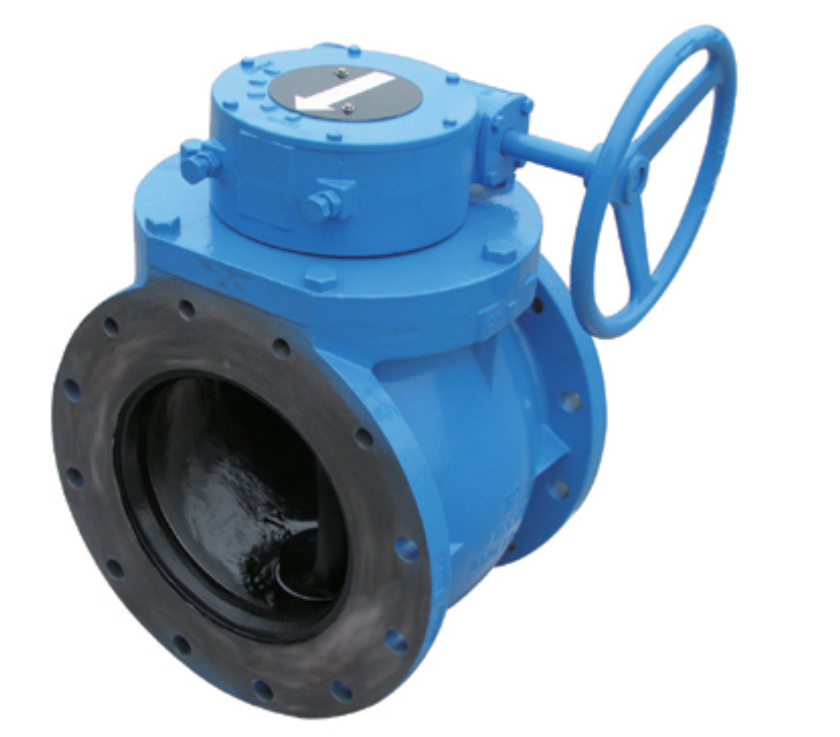

PVGX - Eccentric Plug Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN80 to DN600
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- AWWA C517, ANSI B16.1, EN 1092-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- O-Ring
- Cover
- Fasteners
- Gear Adaptor
- Gland
- Plug
- Plug Rubber Options
- Sleeve Bearing
- Thrust Washer
- V Seal
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |

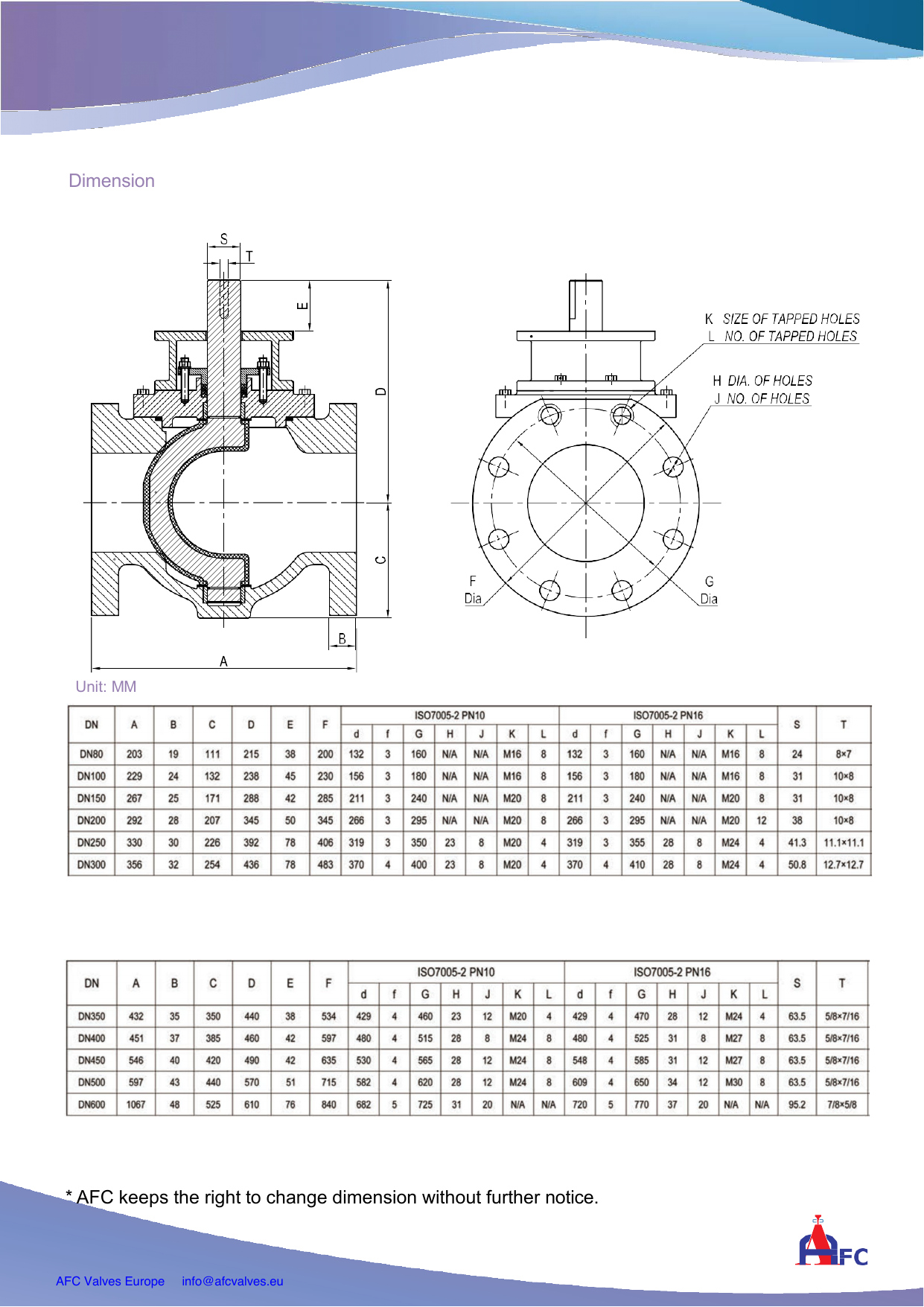

Dimensions per size(11 sizes)
| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | PN10 d (mm) | PN10 f (mm) | PN10 G (mm) | PN10 H (mm) | PN10 J (-) | PN10 K (-) | PN10 L (-) | PN16 d (mm) | PN16 f (mm) | PN16 G (mm) | PN16 H (mm) | PN16 J (-) | PN16 K (-) | PN16 L (-) | S (mm) | SxS | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN80 | 203 | 19 | 111 | 215 | 38 | 200 | 132 | 3 | 160 | N/A | N/A | M16 | 8 | 132 | 3 | 160 | N/A | N/A | M16 | 8 | 24 | 8×7 mm | — |
| DN100 | 229 | 24 | 132 | 238 | 45 | 230 | 156 | 3 | 180 | N/A | N/A | M16 | 8 | 156 | 3 | 180 | N/A | N/A | M16 | 8 | 31 | 10×8 mm | — |
| DN150 | 267 | 25 | 171 | 288 | 42 | 285 | 211 | 3 | 240 | N/A | N/A | M20 | 8 | 211 | 3 | 240 | N/A | N/A | M20 | 8 | 31 | 10×8 mm | — |
| DN200 | 292 | 28 | 207 | 345 | 50 | 345 | 266 | 3 | 295 | N/A | N/A | M20 | 8 | 266 | 3 | 295 | N/A | N/A | M20 | 12 | 38 | 10×8 mm | — |
| DN250 | 330 | 30 | 226 | 392 | 78 | 406 | 319 | 3 | 350 | 23 | 8 | M20 | 4 | 319 | 3 | 355 | 28 | 8 | M24 | 4 | 41.3 | 11.1×11.1 mm | — |
| DN300 | 356 | 32 | 254 | 436 | 78 | 483 | 370 | 4 | 400 | 23 | 8 | M20 | 4 | 370 | 4 | 410 | 28 | 8 | M24 | 4 | 50.8 | 12.7×12.7 mm | — |
| DN350 | 432 | 35 | 350 | 440 | 38 | 534 | 429 | 4 | 460 | 23 | 12 | M20 | 4 | 429 | 4 | 470 | 28 | 12 | M24 | 4 | 63.5 | 5/8×7/16 in | — |
| DN400 | 451 | 37 | 385 | 460 | 42 | 597 | 480 | 4 | 515 | 28 | 8 | M24 | 8 | 480 | 4 | 525 | 31 | 8 | M27 | 8 | 63.5 | 5/8×7/16 in | — |
| DN450 | 546 | 40 | 420 | 490 | 42 | 635 | 530 | 4 | 565 | 28 | 12 | M24 | 8 | 548 | 4 | 585 | 31 | 12 | M27 | 8 | 63.5 | 5/8×7/16 in | — |
| DN500 | 597 | 43 | 440 | 570 | 51 | 715 | 582 | 4 | 620 | 28 | 12 | M24 | 8 | 609 | 4 | 650 | 34 | 12 | M30 | 8 | 63.5 | 5/8×7/16 in | — |
| DN600 | 1067 | 48 | 525 | 610 | 76 | 840 | 682 | 5 | 725 | 31 | 20 | N/A | N/A | 720 | 5 | 770 | 37 | 20 | N/A | N/A | 95.2 | 7/8×5/8 in | — |

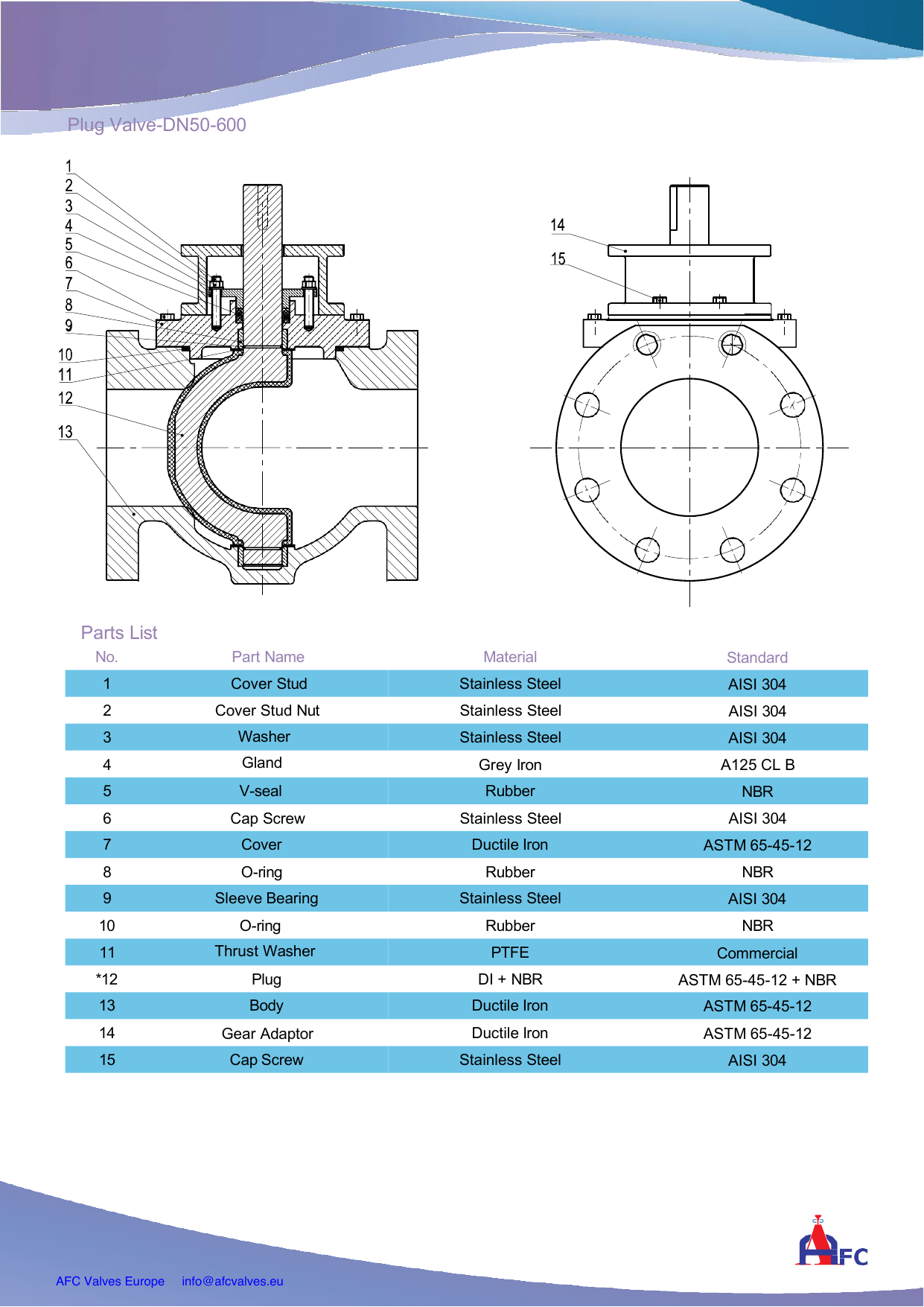

Technical drawings(3 pages)
Typical applications
- Raw sewage
- Sludge
- Abrasive slurries
- Industrial effluent
- Wastewater treatment
Actuation options
Approvals
Features
- The PVGX eccentric plug valve uses an offset plug that lifts clear of the seat as it opens, eliminating rubbing contact and dramatically reducing operating torque and wear
- The plug face contacts the seat only in the fully closed position, providing a positive shut-off with minimal seat wear
- Suitable for raw sewage, sludge, abrasive slurries and general industrial service where conventional valves wear rapidly
- 99% Nickel welded seat for high corrosion resistance
- DN100-DN300 round port; DN350-DN600 square port, giving full path for the flow
- Conforms to the AWWA C517 standard
- The plug is fully encapsulated in rubber, protecting it from direct exposure to the flow media
- Optional plug rubber grades: NBR, EPDM, Neoprene or Viton, selected for media and temperature compatibility
- Eccentric plug design gives a full, unobstructed flow path, reducing turbulence
- The eccentric plug mechanism moves the plug in or out of the body seat during operation for quick opening and closing
- Optional external screen available to keep insects, birds and debris out
- Designed for easy in-line maintenance: gear operators, power actuators or extension rods can be serviced without removing the valve from the pipeline
Description
The PVGX eccentric plug valve uses an offset plug that lifts clear of the seat as it opens, eliminating rubbing contact and dramatically reducing operating torque and wear. The plug face contacts the seat only in the fully closed position, providing a positive shut-off with minimal seat wear. Suitable for raw sewage, sludge, abrasive slurries and general industrial service where conventional valves wear rapidly.
Selection notes
This plug valve is supplied for flanged installation.
Sizes run DN80 to DN600, in PN10, PN16, PN25.
The body is Ductile Iron ASTM 65-45-12.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 80°C.
Built to AWWA C517, ANSI B16.1 and EN 1092-1.
Supplier remarks
- Ordering code model description: "PVGX - Plug Valve, worm gear operated". PN25 is offered as an end-connection/rating option beyond the page-stated PN10/PN16. Working temperature -10C to 80C.
